The Sauermann Si-CPE320 is an evolution of the KIMO CPE 310.

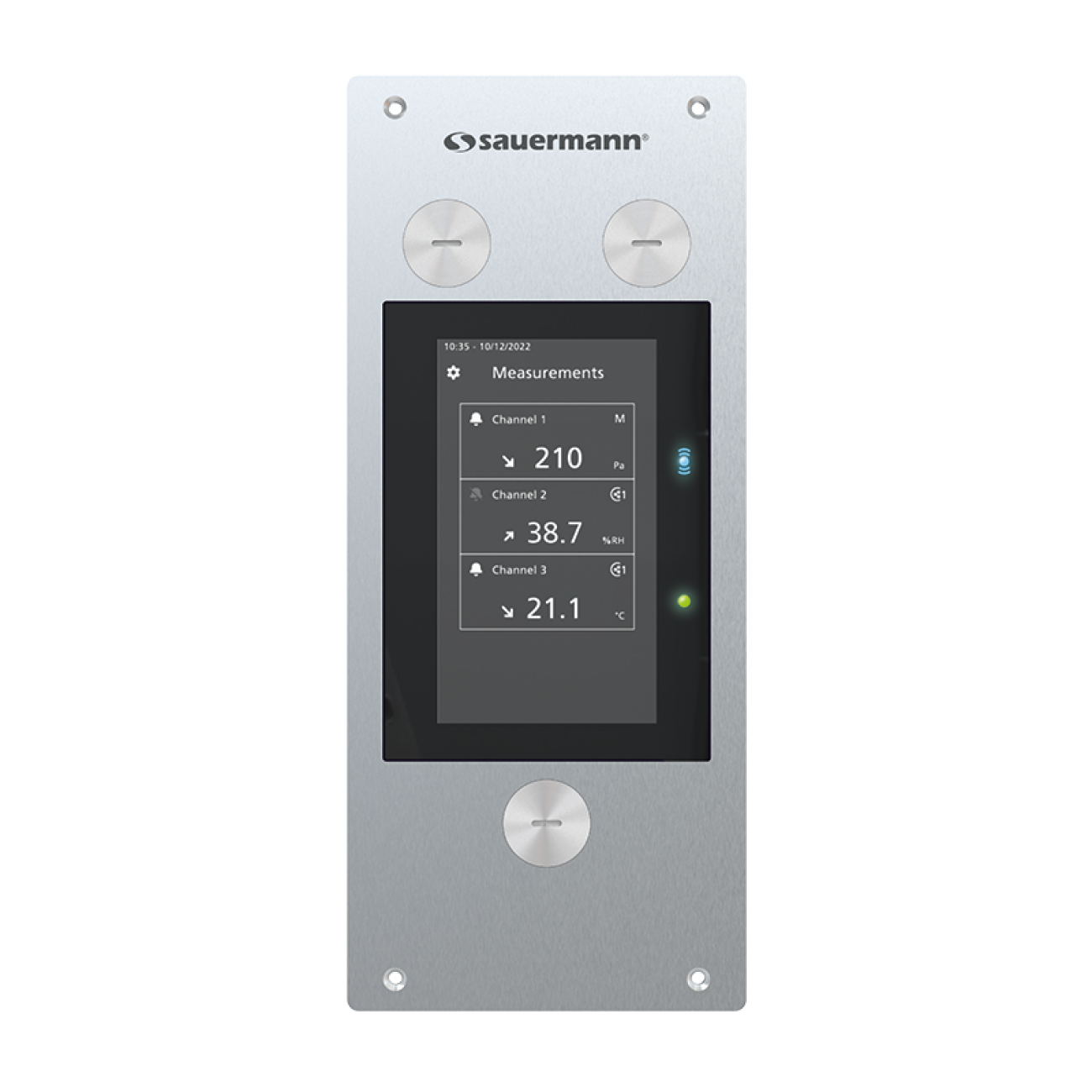

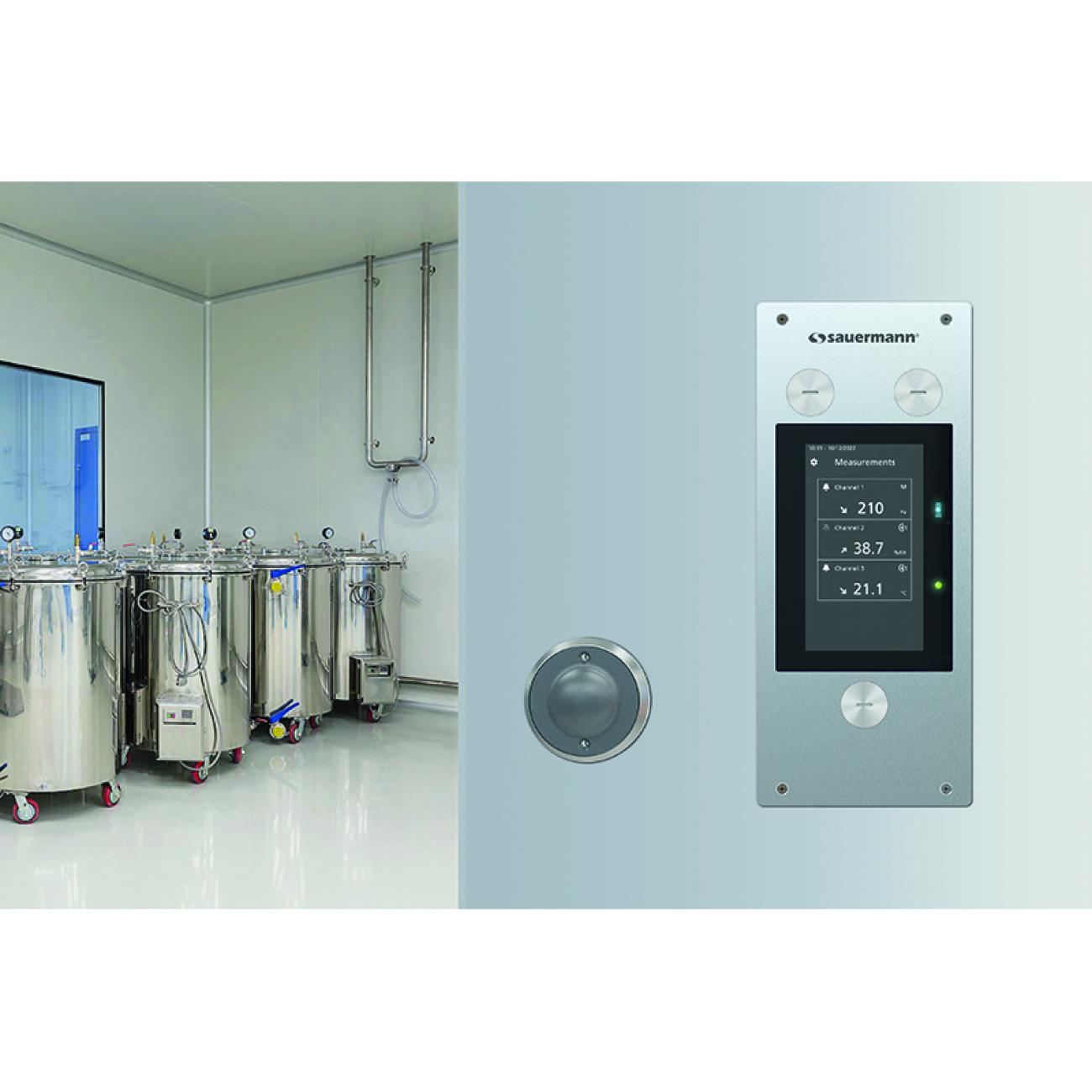

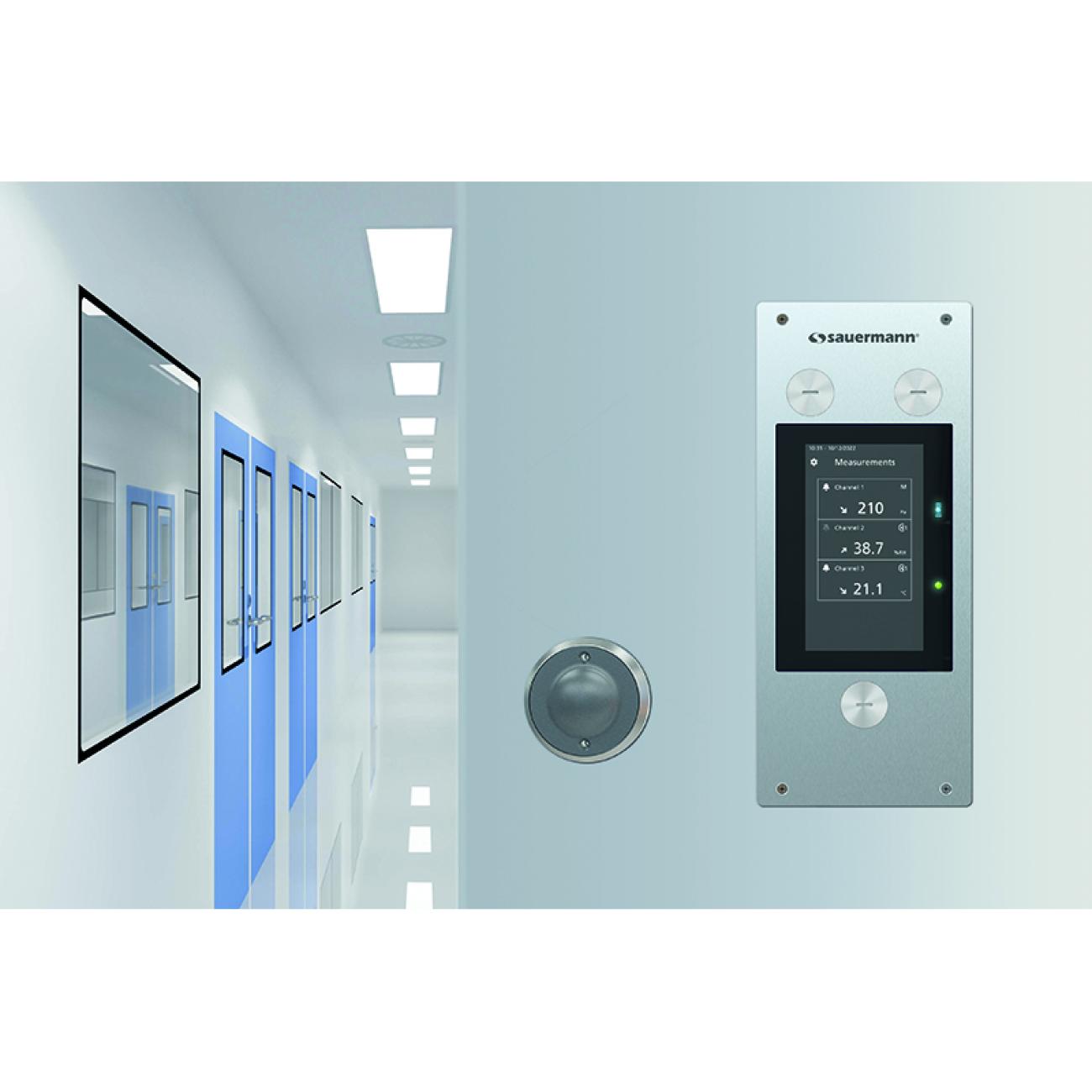

For clean rooms applications, the Si-CPE320 transmitter is flush mountable to avoid disturbing the working environment. It is equipped with a highgrade stainless-steel waterproof front panel with an integrated touch screen.

Equipped with the same technologies as the Si-C320, this panelmounted version provides state-of-the-art reliability and accuracy.

In addition, measurements can be recorded and downloaded via the Sauermann Control application/software.

Si-CPE320: Optional wireless communication module
Si-CPE320-W: Integrated wireless communication module

Technical Data sheet

1 x input for external probe
Graphic touch display
Outputs diagnostic

3 x analogue outputs
IP 66, VHP resistant (Vaporized hydrogen peroxide)
Possibility to edit the channel names

Categories: HVAC Measuring instruments, Instrumentation, Transmitters

Measure details

Units	% RH, °C, °Ctd, °Ctf, °F, °Ftf, °Ftw, ACH, cfm, daPa, g/kg, g/m³, inH₂O, inWc, kj/kg, kPa, m³/h, mbar, mmH₂O, Pa
Alarm	Buzzer (60 dB at 10 cm)

Technical details

Parameters	Absolute humidity, Air Change Rate, Air velocity, Airflow, CO, CO₂, Dew point, Differential pressure, Enthalpy, Frost point, Mixing Ratio, Relative humidity, Temperature, VOC, Wet-bulb temperature
Displays	Graphic touch display
IP Protection	IP 66, VHP resistant (Vaporized hydrogen peroxide)
Standards	2012/19/EU WEEE, 2014/30/EU EMC, 2014/35/EU Low Voltage, 2014/53/EU RED, 2015/863 EU (RoHS 3), UKCA
Wireless connection	1
Power supply	24 VAC / VDC ±10%
Outputs	3 x 0/4-20 mA or 3 x 0-5/10 V (4 wires)
Ethernet communication	No
ModBus network	Yes

Instrument Dimensions

Length	3 15/16 inches ,100 mm
Width	1 27/32 inches , 47 mm
Height	9 7/32 inches , 234 mm
Weight	1 1/2 pounds , 684.4 g

Operating temperature

Min	-10.00 °C, 14.00 °F
Max	122.00 °F, 50.00 °C

Storage temperature

Min	-10.00 °C, 14.00 °F
Max	158.00 °F, 70.00 °C

1 Si-CPE320 multifunction panel transmitter
1 integrated high accuracy differential pressure sensor (-250 to 250 Pa / -1.0 to 1.0 inH₂O)
3 analogue outputs
1 RS485 interface with ModBus RTU protocol
1 input for probes
1 adjusting certificate
Terminal blocks for power connection, and output connections
1 front pressure connector cap with a pierced hole in the middle
1 silicone cap for closing a rear pressure connector
1 protective cap for frontal interface connection
1 protective cap for the external probe connector
Si-CPE320: Optional wireless communication module
Si-CPE320-W: Integrated wireless communication module

Temperature probe For class 320 transmitters

Relative humidity and temperature probe

Heated humidity probe

Hygrometry probes For class 320 transmitters

IAQ probes For class 320 transmitters

Air velocity hotwire probe For class 320 transmitters

Transmitters and probes accessories

Wireless communication module For class 320 transmitters

Sauermann Control software For class 320 transmitters

Sauermann Control mobile App For class 320 transmitters
