Temperature / Hygrometry / Atmospheric pressure KPA 320

The KPA 320 Multi-Function Data Logger with wireless connection measures humidity, temperature and atmospheric pressure.

Data Loggers are widely used in agriculture, industry and clinical laboratories to monitor a variety of parameters.

Technical Data sheet

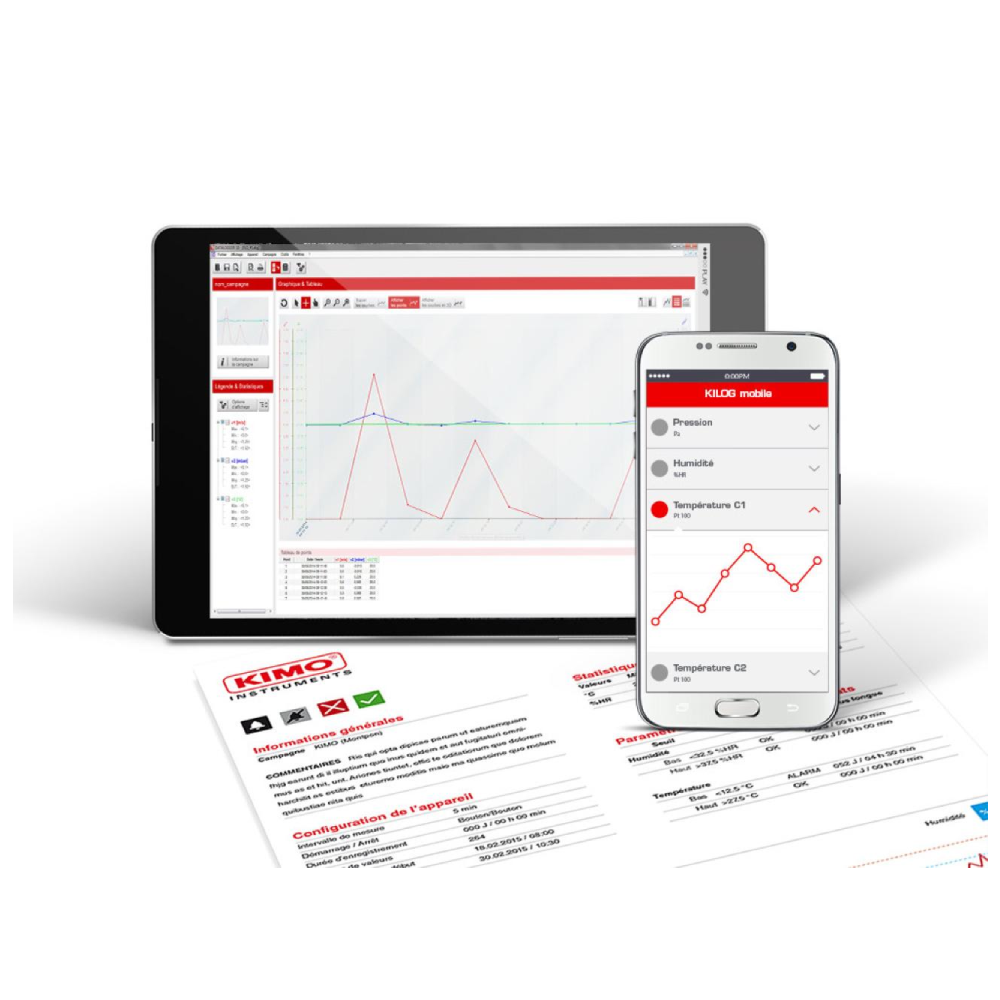

Wireless connection for smartphones & tablets (Android and iOS)
Supplied with an anti-theft wall mount with lock
Large 2-line LCD screen

Record up to 3 parameters simultaneously
Large storage capacity of 2 million points
Monitoring mode for detailed reporting outside of set points

Categories: Autonomous data loggers, Data loggers, HVAC Measuring instruments, Instrumentation

Measure details

Frequency of measurements min	1 minutes
Frequency of measurements max	24 hours
Number of record points	2 000 000
Units	% RH, °C, °F, hPa
Alarm	2 configurable setpoint alarms

Technical details

Parameters	Atmospheric pressure, Humidity, Temperature
Displays	2-line display
IP Protection	IP 40
Battery life	5 years
Standards	2011/65/EU RoHS II, 2012/19/EU WEEE, 2014/30/EU EMC, 2014/35/EU Low Voltage, UKCA
Wireless connection	1
Power supply	2 lithium double AA 3.6 V batteries
Sensors	Internal sensors
Magnetise case	Yes
Securable mounting	wall bracket & lock included, Yes

Instrument Dimensions

Length	71.5 mm
Width	34.2 mm
Height	147.9 mm
Weight	220 g

Operating temperature

Min	0.00 °C
Max	50.00 °C

Storage temperature

Min	-20.00 °C
Max	80.00 °C
