Thermo-anemometer with integrated vane probe LV 110 / 111 / 117 - Image 1

Thermo-anemometer with integrated vane probe LV 110 / 111 / 117 - Image 2

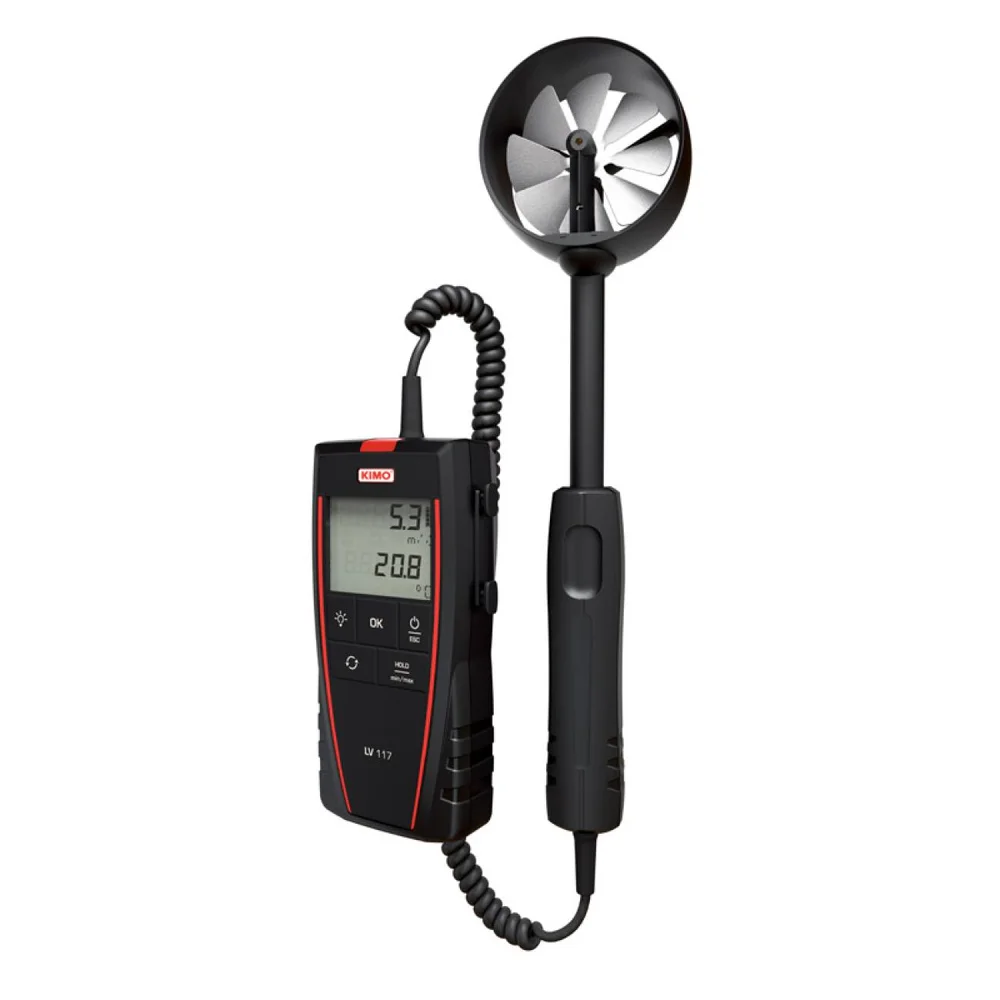

Thermo-anemometer with integrated vane probe LV 110 / 111 / 117

The Kimo LV 110 / 111 / 117 displays velocity and temperature measurements.

Technical Data sheet

Airflow calculation
Hold function and min-max values
Airflow calculation, airflow calculation with cone (LV 110/117), detection of flow direction

Automatic average
Selection of units
Vane: LV111: Ø14 mm / LV117: Ø70 mm/ LV110: Ø100 mm

Categories: Anemometers, HVAC Measuring instruments, Instrumentation, Portable instruments

Measure details

Units	°C, cfm, fpm, km/h, l/s, m/s, m³/h, m³/s

Technical details

Parameters	Air velocity, Airflow, Temperature
Displays	4-line display
IP Protection	IP 54
Battery life	58 hours
Standards	2011/65/EU RoHS II, 2012/19/EU WEEE, 2014/30/EU EMC, 2014/35/EU Low Voltage, UKCA
Power supply	4 batteries AAA LR03 1.5 V
Anemometer type	Vane
Protective cover	No
Interchangeable module	No

Instrument Dimensions

LV 110	0.30 m/s, 35.00 m/s
LV 111	0.80 m/s, 25.00 m/s
LV 117	0.40 m/s, 35.00 m/s
LV 110- LV111-LV 117	0.00 m³/h, 99999.00 m³/h
LV 110- LV111-LV 117	-20.00 °C, 80.00 °C

Operating temperature

Min	0.00 °C
Max	50.00 °C

Storage temperature

Min	-20.00 °C
Max	80.00 °C

Airflow cones For vane anemometers

Telescopic extension RTE For portable instruments
