TotalSense PM/VOC/CO2/RH/TotalSense Duct

Higher Reliability, Faster Installation, Superior Accuracy | Sense the Difference

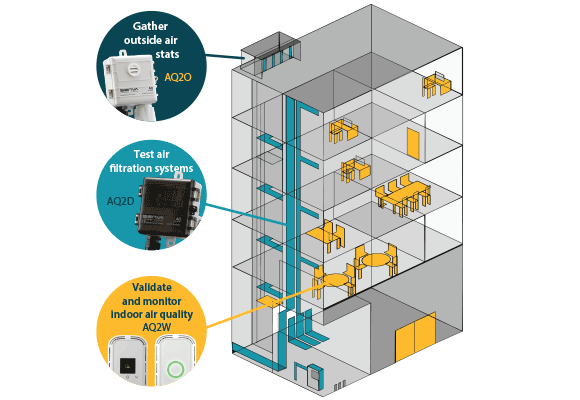

Build a complete air quality system for indoor, duct, and outdoor

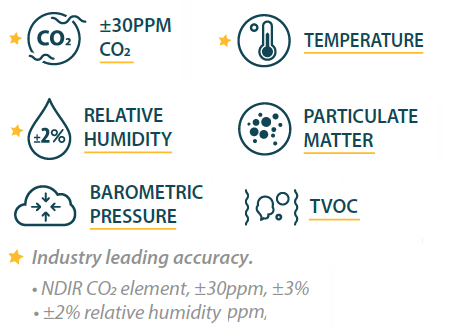

Six environmental sensors: PMx, VOC, CO2, RH, T, barometric pressure
BACnet/Modbus or analog outputs with set-point relay
Pair with an IOTBuddy for BACnet IP or IOT Connection

  • NEW! Configure and update firmware with the SenvaSync app
  • Reduce installation costs with multiple sensors in a rugged, easy-mount duct enclosure
  • Specify the exact product for your application and made in USA
  • Sense unhealthy particulates or TVOC's in your duct system
  • Industry-leading temperature and barometric pressure compensated CO2 sensing with non-dispersive infrared sensing element (NDIR), 15+ year life expectancy on CO2 sensing element; ±30ppm, ±3% of reading
  • Tamper-proof

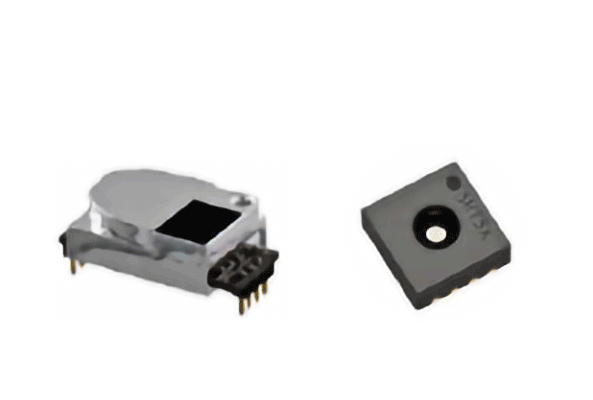

  • Field-replaceable RH, Temp, and CO2 sensors ease maintenance
  • 7-year limited warranty / 3 years on CO2 sensor - 2 years on all others

Ask for a quotation

The TotalSense Series Duct AQ sensor provides more data for more advanced ventilation control while drastically reducing installation cost and time on a project. It includes a comprehensive selection of AQ sensing with carbon dioxide (CO2), relative humidity (RH), and temperature plus options for total volatile organic compounds (TVOC), barometric pressure and particulate matter (PM).

  • Measure duct air quality to validate filtration systems and deliver fresh air
  • Verify effectiveness of IAQ strategies in post covid environment
  • Energy management/building control
  • Facilitates compliance with ASHRAE 62.1 standard for air quality
  • Contributes toward satisfying Feature A08 and T06 under the WELL Building Standard®

Power Supply

Non-Display

16-30VDC/24VAC(1), 3.5W nominal, 4W max.

Interface

OLED (optional)
Air Quality Ring

1.5” Organic LED Display, 128x128, color
Color changing (red/yellow/green) LED Air Quality Ring

Analog Outputs
(Analog or Dual version only)

Quantity
Source
Scale

Up to 3 outputs
CO2, RH%, Temp, TVOC, PM, CO, Ozone (selectable)
0-5V, 0-10V, 4-20mA (switch selectable, programmable per output)

Protocol Output
(Comms or Dual version only)

Protocol
Connection
Data Rate
Address Range

BACnet MS/TP or Modbus RTU
3-wire RS-485, with isolated ground
9600, 19200, 38400, 57600, 76800, 115200 (switch selectable)
0-127

Relay

Type
Polarity
Source

Solid-state output, 1A @ 30VAC/DC, N.O.
NO/NC (selectable)
CO2 setpoint, RH setpoint, Temp setpoint, TVOC setpoint, PIR motion detection, Air Quality, off (selectable)

CO2 (Optional)

Type
Accuracy (Standard)
Accuracy(Dual)
Drift with ABC disabled (Standard)
Drift with ABC disabled (Dual Channel)
Resolution
Range
Response time
Sample rate
Temp and Pressure Compensation

Non-dispersive Infrared (NDIR)
±(30ppm + 3% of reading) (400-2,000ppm), -10-50ºC, 0-85%RH
±(50ppm+ 5% of reading) (2,000-5,000ppm), -10-50ºC, 0-85%RH
>5,000ppm consult factory
±(30ppm + 3% of reading) (0-2,000ppm), @ 0-50ºC
±(50ppm+ 3% of reading) (2,000-5,000ppm), @ -10-50ºC
±(100ppm+ 10% of reading) (5,000-10,000ppm), @ 0-50ºC
35ppm/month
5ppm/month
1 ppm
0-2,000 PPM (Default) (Programmable up to 10,000ppm)
90 seconds to 90% reading
1s
Yes, barometric pressure readable over comms

Relative Humidity
(Optional)

Type
Accuracy(2)
Resolution
Response time (3)
Sample rate
Operating range
Operating conditions (4)

Digital CMOS
2% models, +/-2% over 0 to 80%RH range
0.05%RH
30s
3s
0 to 100%RH (non-condensing)
-4 to 140oF (-20 to 60° C) @ RH>90%; -4 to 176oF @ RH=50%

Temperature Transmitter
(Optional)

Type
Nominal Accuracy
Maximum Accuracy (2)
Resolution
Response time
Sample rate

Silicon Band-gap
±0.3° C (operating range)
±0.5° C (at 25° C), ±1.0° C
0.1° C
30s
3s

TVOC (Optional)

Type
Gas
Formaldehyde CH2O Sensitivity
Range
Response Time
Accuracy (5)
Output

MOS
Total VOC
Responsive to Formaldehyde concentrations 50-1000 ppb
0-10,000 μg/m3
<10s
±20 μg/m3 + 15% at 1 to 500 μg/m3 (typical)
0-2,000 μg/m3 (default) programmable up to 10,000 μg/m3

PMx (Optional)
CLASS 1 LASER PRODUCT

Type
Size Range
Scale
Lower detection limit
Precision
Long-Term Drift

Optical
PM1.0, PM2.5, PM4.0, PM10.0
0-1,000 μg/m3
0.3 μm
±10 μg/m3 (0-100μg/m3); ±10% (100-1,000 μg/m3)
±1.25 μg/m3 / year

Carbon Monoxide

Type
Detection Range
Accuracy
Resolution
Response Time
Sensor Life
Certifications

Electrochemical
0-200 ppm
5% of reading
1 ppm
60 seconds
5 years
UL2034 Recognized Component

Ozone

Type
Ozone Detection Range
Accuracy

PMOS
20-500 ppb
±15% of FS @ 20° C

Operating Environment
Enclosure

Temperature
Humidity
Material
Dimensions
Conduit Opening
Rating

-4 to 122° F (-20 to 50° C). Devices including PM or CO sensors rated (-10 to 50° C) CO sensors can intermittently operate down to –20°C.”
0-95% non-condensing
ABS/Polycarbonate

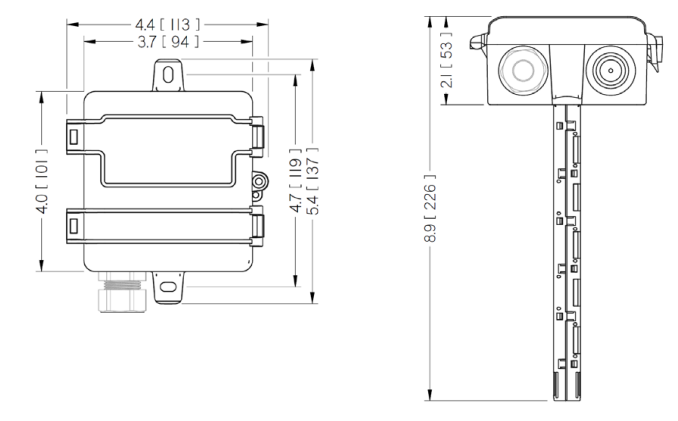

4.0”h x 4.4”w x 2.1”d (+6.8” probe)
Tapped 1/2” NPT
IP43 or NEMA 3R

Compliance

Agency

CE, RoHS

(1) One side of transformer, secondary is connected to signal common. Dedicated transformer is recommended.
(2) Models with PM sensor included achieve ±5% accuracy over 0 to 80%RH range and an additional temperature shift of up +0.5° C.
(3) Time for reaching 63% of reading at 25° C and 1 m/s airflow.
(4) Long term exposures to conditions outside normal range at high humidity may temporarily offset the RH reading (+3%RH after 60 hours).
(5) Wiring with silicone or other high VOC insulation will affect TVOC readings.
