Si-TT3

SAUERMANN

Dual Input Thermometer K Thermocouple Temperature

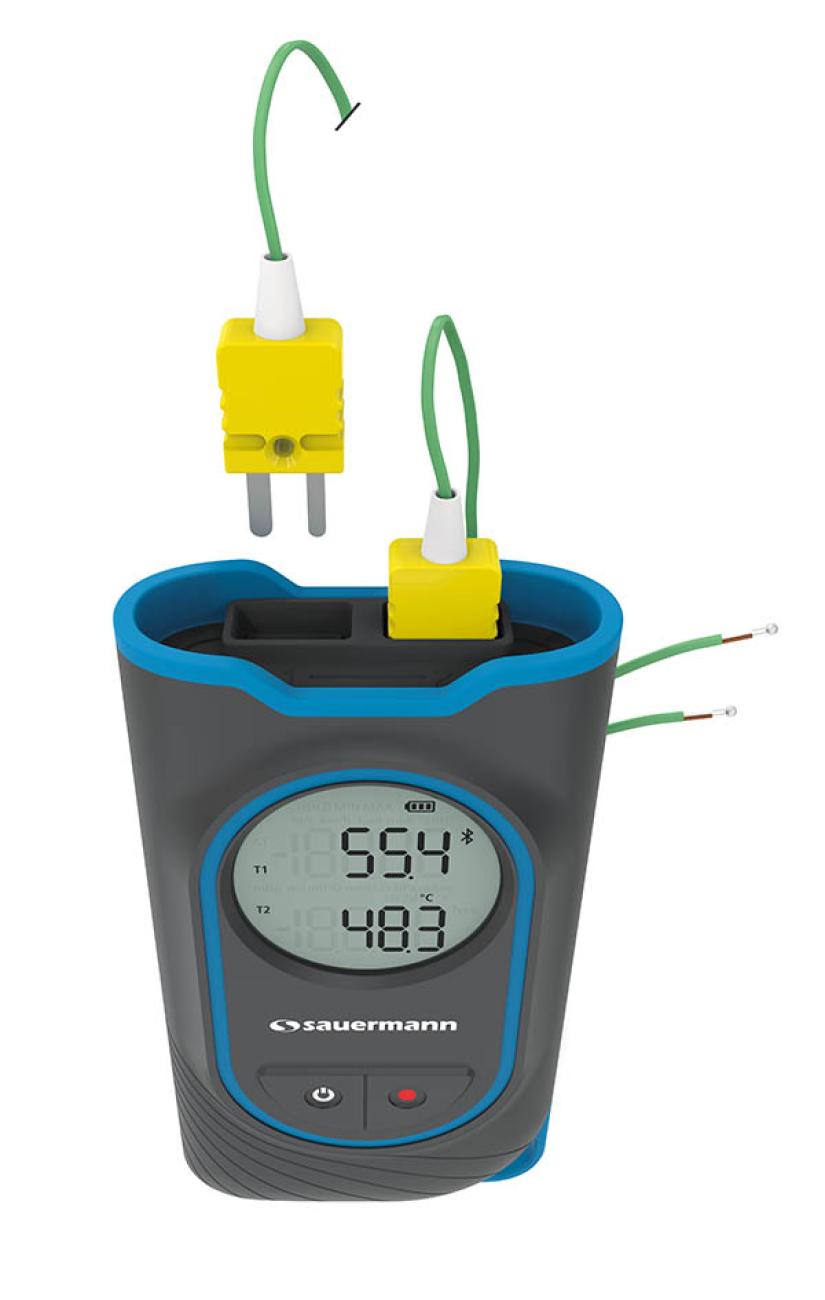

The palm-sized Sauermann Si-TT3 dual input thermometer easily measures K thermocouple temperature.

Technical Data sheet
REQUEST A QUOTE

Ask for a quotation

  • Dual channel K Thermocouple, measuring range: -200 to 1300°C/ -328 to 2372°F
  • 2 probes included, measuring range: -40 to 260°C/-40 to 500°F
  • Backlit LCD screen
  • Magnetic backing for easy fixing + Carrying bag
Categories: , , ,

Measure details

Units

°C

,

°F

Measuring ranges

Temperature

-200.00 °C … 1300.00 °C

Technical details

Parameters

Temperature
Displays

2-line display
IP Protection

IP 54
Battery life

400 hours
Standards

2012/19/EU WEEE

,

2014/53/EU RED

,

RoHS II 2011/65/EU (EU)2015/863

,

UKCA
Wireless connection

1
Power supply

3 alkaline batteries LR03 AAA 1.5 V
Protective cover

Yes
Interchangeable module

No

Instrument Dimensions

Length

2 3/4 inches 70 mm
Width

1 5/16 inches 33 mm
Height

5 11/32 inches 136 mm
Weight

7 13/32 pounds 210 g

Operating temperature

Min

-10.00 °C
Max

60.00 °C

Storage temperature

Min

-20.00 °C
Max

70.00 °C
  • 2 K Thermocouple wire probes, class 2, 1 m (39.37’’) cable length
  • 1 Certificate of conformity
  • 1 Quick Start Guide
  • 3 alkaline batteries LR03 AAA 1.5 V
  • 1 Carrying bag

Si-HVACR Measurement Mobile App

HVACR measuring instruments range
