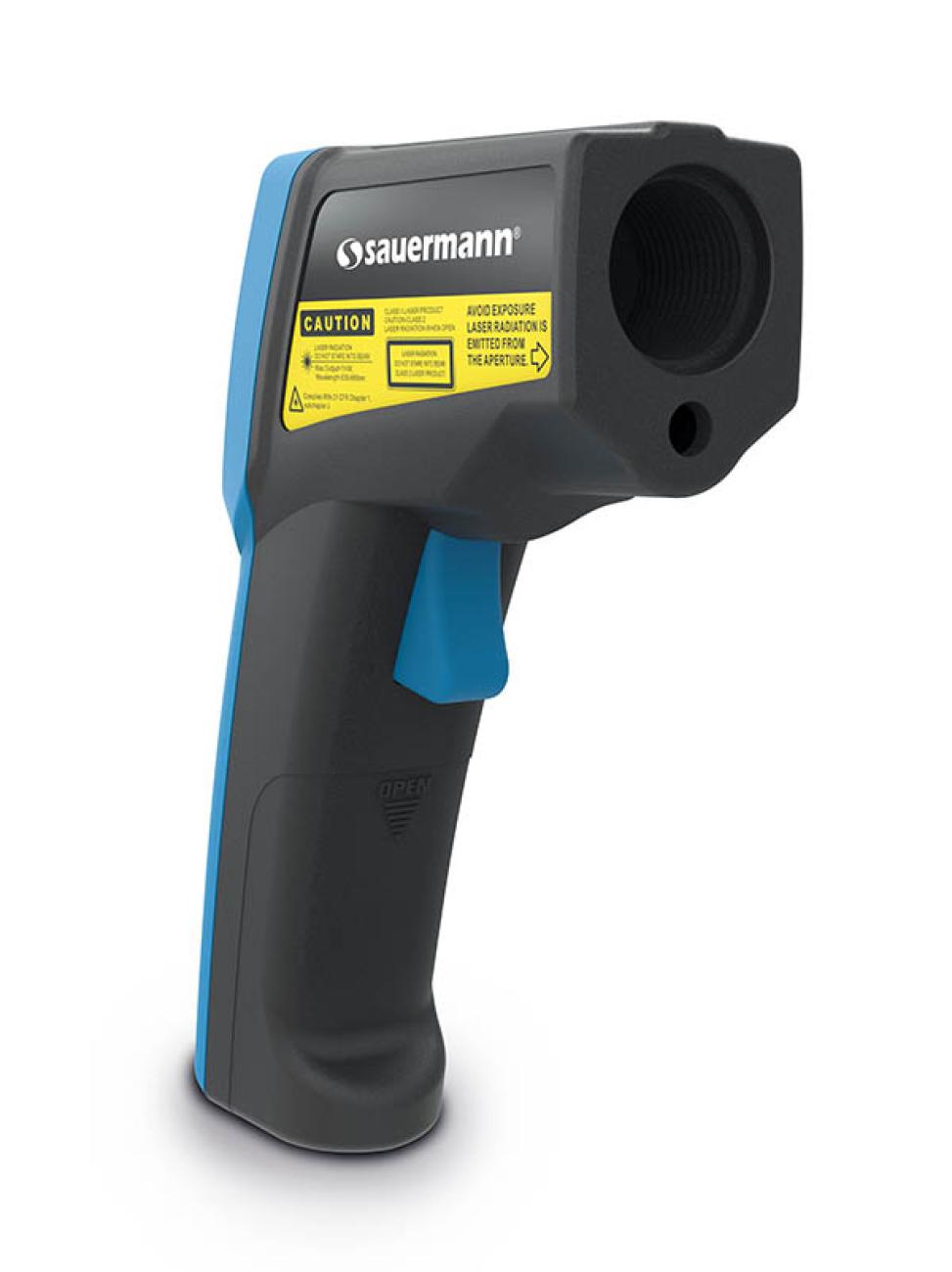

Si-TI3 Infrared thermometer

The palm-sized Sauermann Si-TI3 infrared thermometer is a key instrument to diagnose, inspect and check any temperature, with the advantage of using “no-contact” technology.

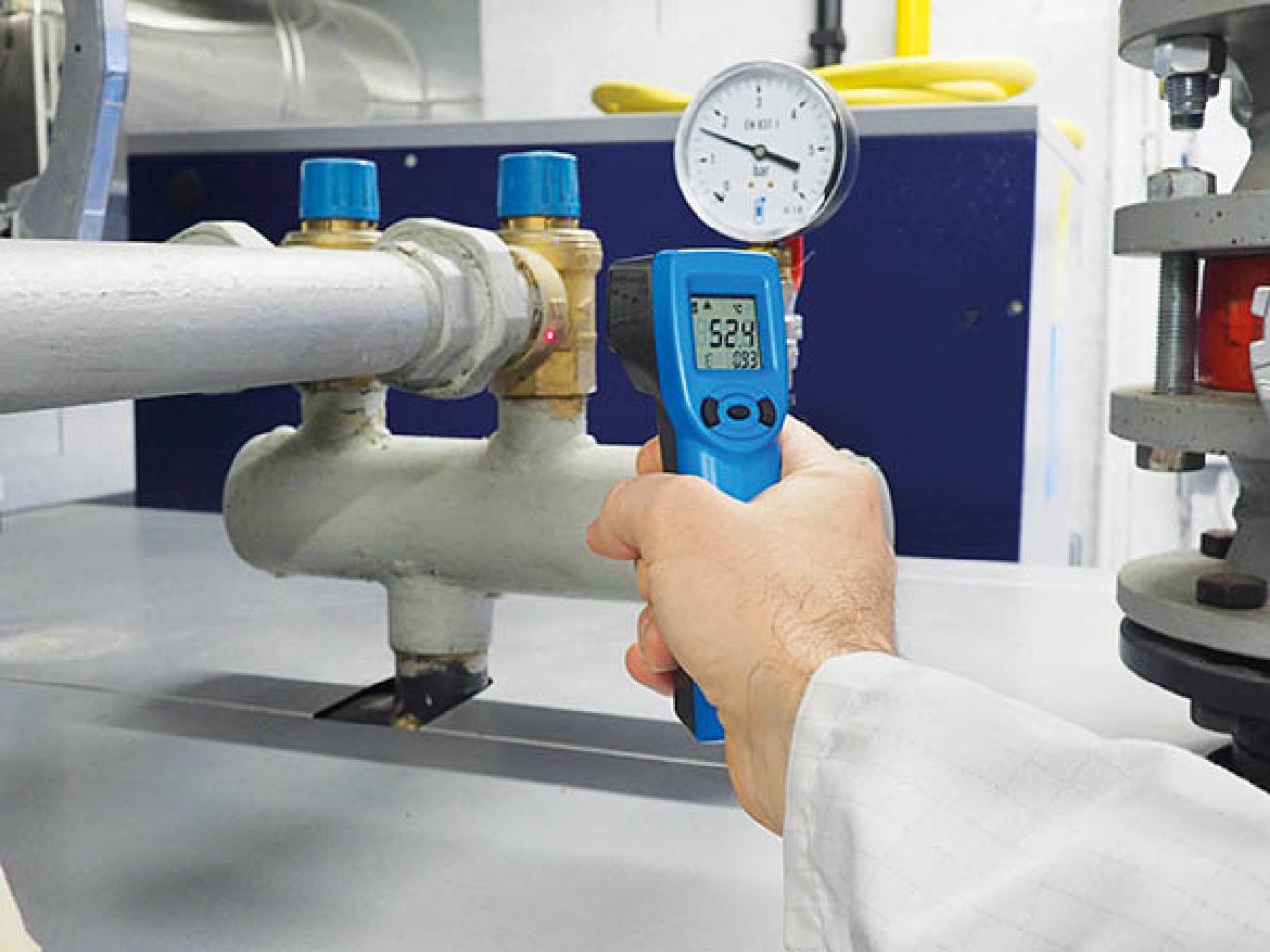

An infrared thermometer measures surface temperatures of hot objects that are dangerous or difficult to access.

Technical Data sheet

Optical: D.S 12:1
Backlit LCD screen

Adjustable emissivity
Carrying bag

Categories: HVAC Measuring instruments, Instrumentation, Portable instruments, Thermometers

Measure details

Units	°C, °F

Measuring ranges

Infrared temperature	-40.00 °C … 500.00 °C
Ambient Temperature	0.00 °C … 50.00 °C

Technical details

Parameters	Temperature
Displays	3-line display
Battery life	17 hours
Standards	2011/65/EU RoHS II, 2012/19/EU WEEE, 2014/53/EU RED
Wireless connection	1
Power supply	2 alkaline batteries LR03 AAA 1.5 V
Protective cover	No
Interchangeable module	No

Instrument Dimensions

Length	4 7/16 inches 112.6 mm
Width	1 5/8 inches 41.3 mm
Height	5 27/32 inches 148.2 mm
Weight	5 3/32 pounds 145 g

Operating temperature

Min	0.00 °C
Max	50.00 °C

Storage temperature

Min	-10.00 °C
Max	60.00 °C

1 Certificate of conformity
1 Quick Start Guide
2 alkaline batteries LR03 AAA 1.5 V
1 Carrying bag

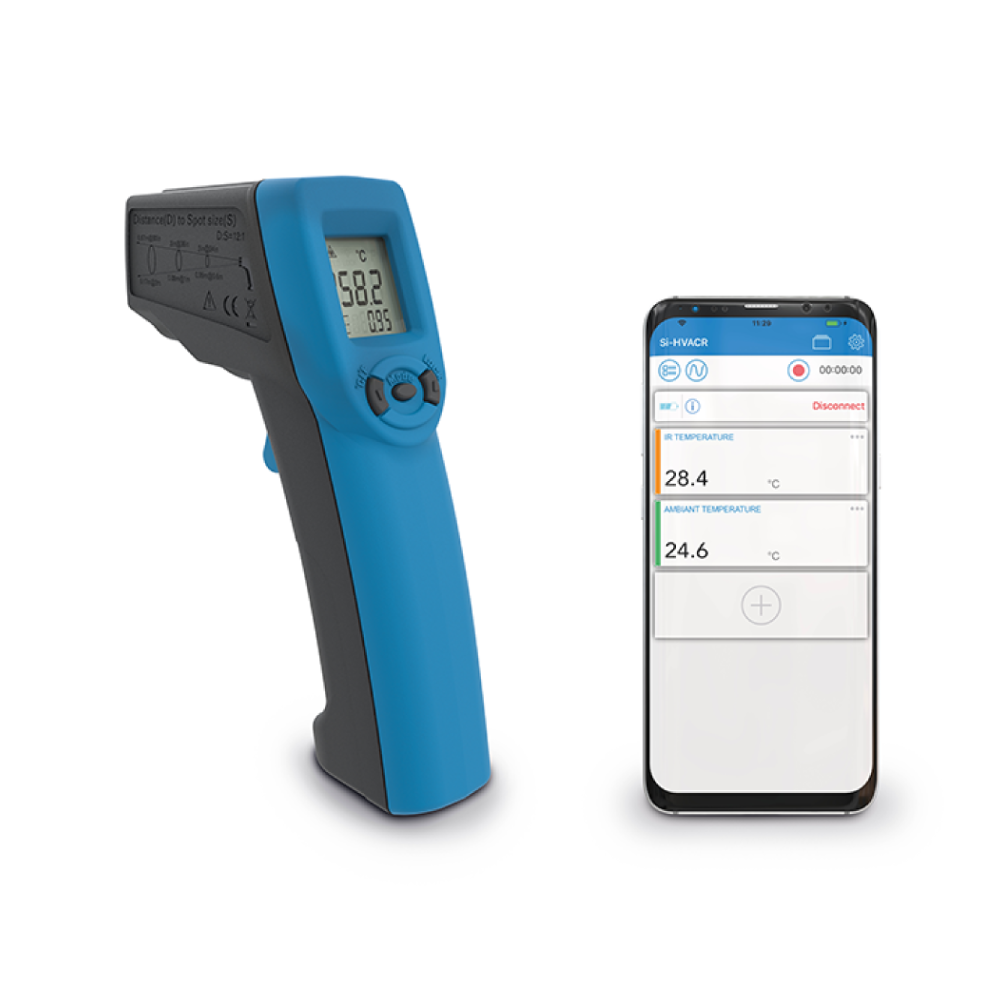

Si-HVACR Measurement Mobile App

HVACR measuring instruments range
