Wet Differential Pressure Sensor

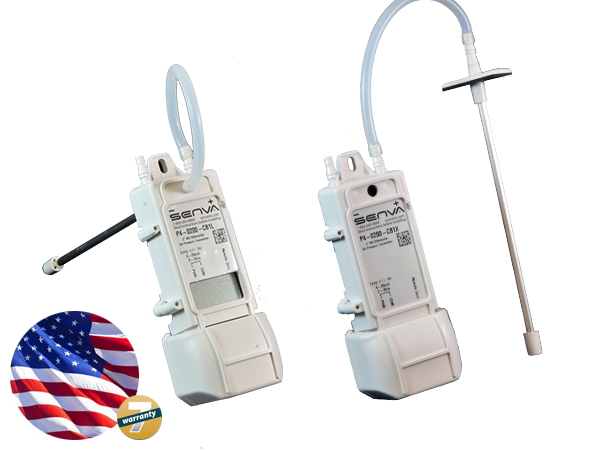

P4 Value Dry Pressure

SENVA

Higher Reliability, Faster Installation, Superior Accuracy | Sense the Difference
Range: 0.1 to 25″ W.C.
0-5VDC/10VDC or 4-20 mA loop &3-wire powered versions
LCD option & LED status indication
Remote & manual zero function
PATENTED DESIGN

  • Duct, filter, and room pressure with a single unit with RP-6 probe addition
  • LCD option for set-up and reference
  • Non-position sensitive for easy placement accuracy
  • 0-5VDC/10VDC or 4-20 mA loop or 3-wire powered versions
  • DIN mount flat or side to conserve panel space
  • Conduit cover for 3/8” flex connectors...no extra parts required
  • LED: Power heartbeat, auto-zero complete, 110% over pressure; facilitates locating sensor in ductwork
REQUEST A QUOTE

Ask for a quotation

Categories: , ,
The P4 dry media pressure transmitter features fixed ranges optimized for building (zone) pressure, filter measurement, and static duct applications. Innovative static probe integrates with unit or can be mounted remotely for static pressure. PATENTED DESIGN
  • Building (zone) pressure
  • Filter condition measurement
  • Duct/static
  • OEM HVAC

Power Supply

12-30VDC/24VAC(1), 30mA max
Output type Outputs Available 4-20mA loop powered, 4-20 mA 3-wire, 0-5VDC, 0-10VDC
Fixed Ranges

Multiple Fixed Ranges (Inches of w.c. and Pascals)

0.05”w.c. up to 50”w.c. models
25 Pa up to 5000 Pa models
Operating Temperature

Operating range
Compensated range

-4 to 140F (-20 to 60ºC)
-4 to 140F (-20 to 60ºC)

Media compatibility

Dry, oil-free air, N2

Sensor Type

 MEMS silicon piezoresistive; precision calibrated
Sensor Performance

Accuracy 1.00%
Accuracy 0.25%(2)
Accuracy 0.50%(2)
Zero Tolerance
Span Tolerance (3)
Zero Drift (1 year)
Auto-zero input
Thermal Shift (Zero and Span)
Overpressure
Max Static Line Pressure
Burst Pressure
Position Sensitivity

±1.00% of range
±0.25% of range; 7-point NIST calibrated
±0.50% of range; 7-point NIST calibrated
Included in accuracy specification
±1.00%
0.004”WC/year max. 0.4% for units >0.5”w.c.
Push-button and contact closure
0.02% FSO/ºC (0.01%FSO/ºF) measured from 22ºC (72ºF
up to 5” models: 41.5”w.c.; 10” models: 133”w.c.;
25” models: 332"w.c
up to 5” models: 41.5”w.c.; 10” models: 133”w.c.; 25” models: 332”w.c.
up to 5” models: 83”w.c.; 10” models: 166”w.c.; 25” models: 415”w.c.
Non-position sensitive
Agency Compliance CE, RoHS
Enclosure

Flammability
Environmental

UL94 5VB
NEMA 1

(1) One side of transformer secondary is connected to signal common. Dedicated transformer is recommended.
(2) Accuracy includes non-linearity, hysteresis, and repeatability at 70ºF.
(3) Span tolerance is ±1% ±0.005inWC for models less than 0.10inWC or equivalent pressure range.
