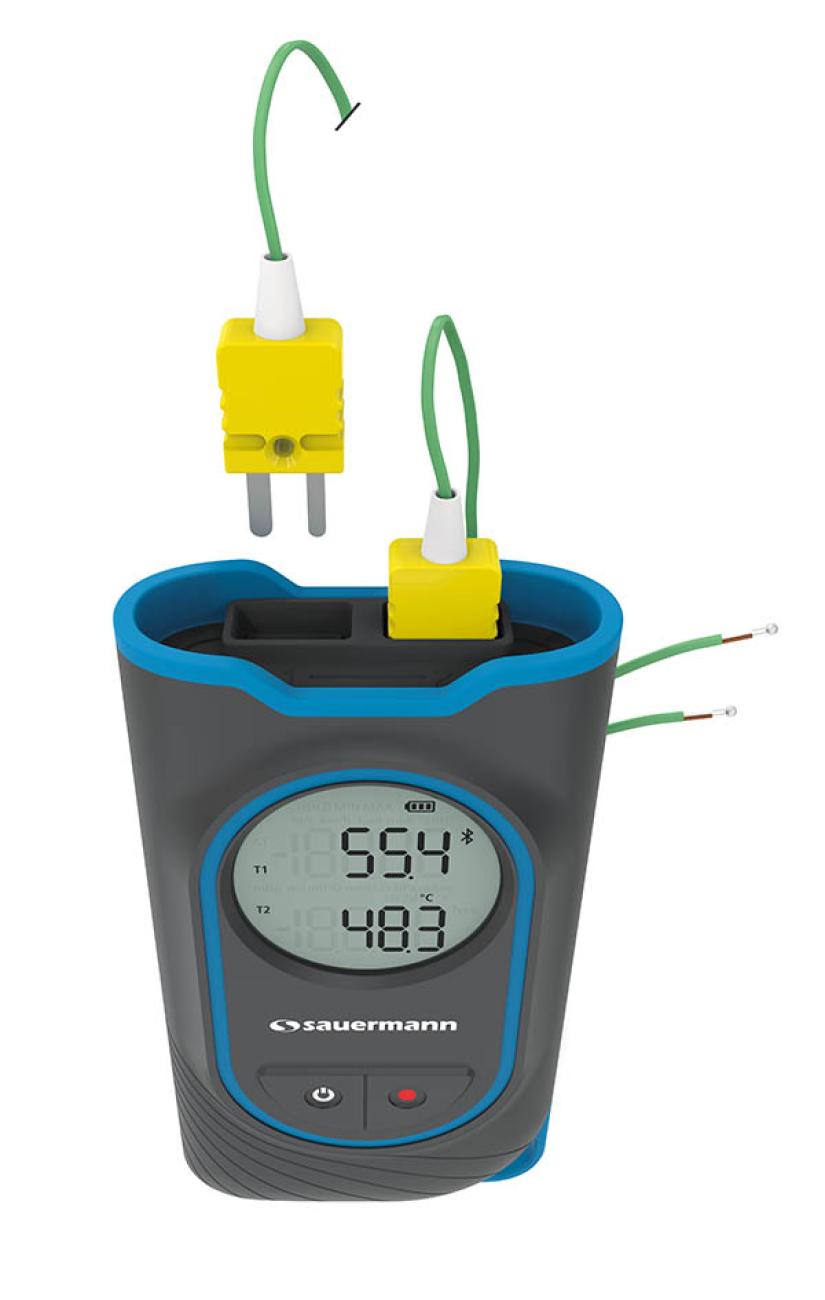

Si-TT3

Dual Input Thermometer K Thermocouple Temperature
The palm-sized Sauermann Si-TT3 dual input thermometer easily measures K thermocouple temperature.

Technical Data sheet

Dual channel K Thermocouple, measuring range: -200 to 1300°C/ -328 to 2372°F
2 probes included, measuring range: -40 to 260°C/-40 to 500°F

Backlit LCD screen
Magnetic backing for easy fixing + Carrying bag

Categories: HVAC Measuring instruments, Instrumentation, Portable instruments, Thermometers

Measure details

Units	°C, °F

Measuring ranges

Temperature	-200.00 °C … 1300.00 °C

Technical details

Parameters	Temperature
Displays	2-line display
IP Protection	IP 54
Battery life	400 hours
Standards	2012/19/EU WEEE, 2014/53/EU RED, RoHS II 2011/65/EU (EU)2015/863, UKCA
Wireless connection	1
Power supply	3 alkaline batteries LR03 AAA 1.5 V
Protective cover	Yes
Interchangeable module	No

Instrument Dimensions

Length	2 3/4 inches 70 mm
Width	1 5/16 inches 33 mm
Height	5 11/32 inches 136 mm
Weight	7 13/32 pounds 210 g

Operating temperature

Min	-10.00 °C
Max	60.00 °C

Storage temperature

Min	-20.00 °C
Max	70.00 °C

2 K Thermocouple wire probes, class 2, 1 m (39.37’’) cable length
1 Certificate of conformity
1 Quick Start Guide
3 alkaline batteries LR03 AAA 1.5 V
1 Carrying bag
