Fixed (Go No) Switches

Higher Reliability, Faster Installation, Superior Accuracy | Sense the Difference
Go / No status
0.25 – 200A range

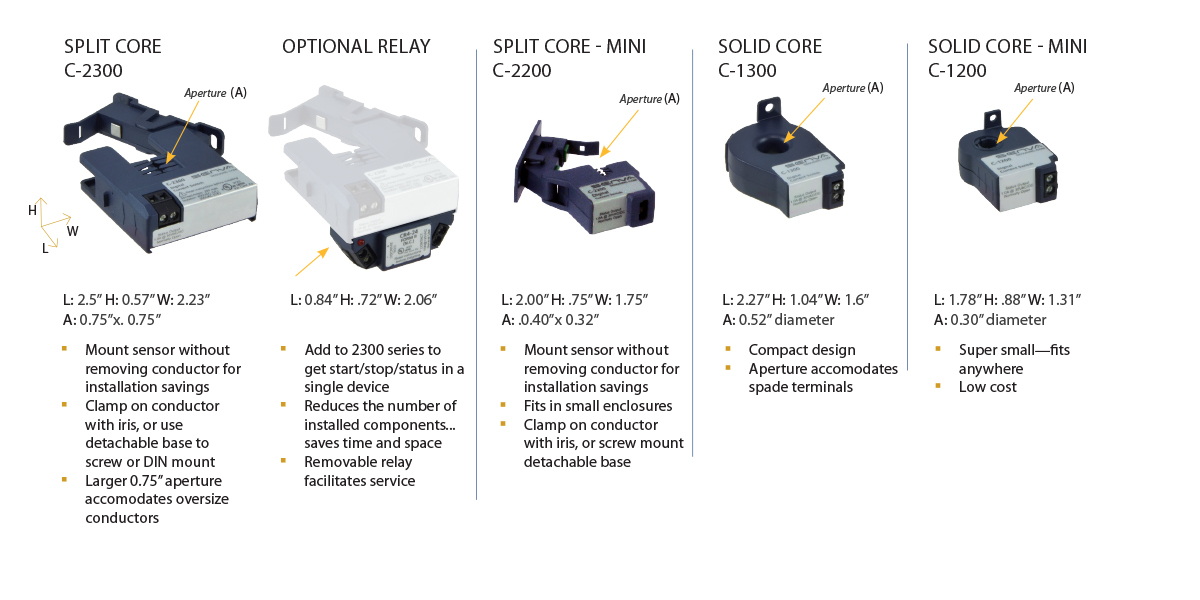

Split and solid core models
N.O. 30VAC/DC or 120VAC output

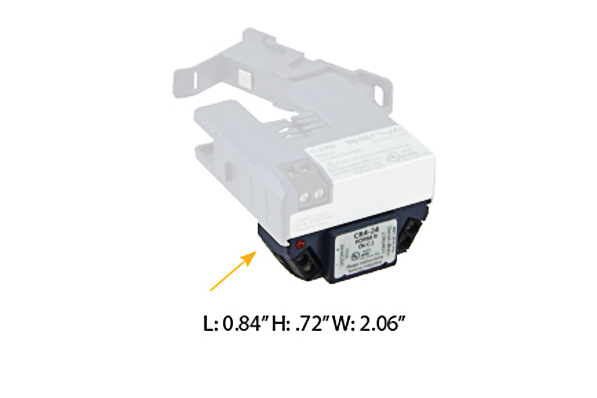

Optional command relay with LED

  • Solid state - no moving parts to fail
  • Less expensive than 277V relays for lighting status
  • More reliable for status than relays across auciliary contacts
  • Industry leading 7 year limited warranty

Ask for a quotation

Looking for cost-effective status? Our mini-solid core fits in the smallest enclosures. Our split-core is great for retroft, plus you can snap on a serviceable command relay for controlling the load in a single device. Great for go/no status on resistive loads, unit-vent heaers, and more. NOTE: CR1 series command relay has been updated to CR3 and CR4 series.

  • Monitoring on/off status of electrical loads
  • Monitoring direct-drive units, exhaust fans, and other fixed loads
  • Verifying lighting run times
  • Great for data center current switch sensing

Standard Output Rating

1.0A@30VAC/DC

Line Voltage Output Rating

0.2A@120VAC (-HV models only)

Output Type

NO, solid-state FET

Environmental Rating

5-140 °F (-15-60 °C)
10-90% RH Non-condensing

Insulation Class

600V RMS. For use on insulated conductors only!
Use minimum 75°C insulated conductor

Sensor Power

Induced

Frequency Range

50/60Hz
