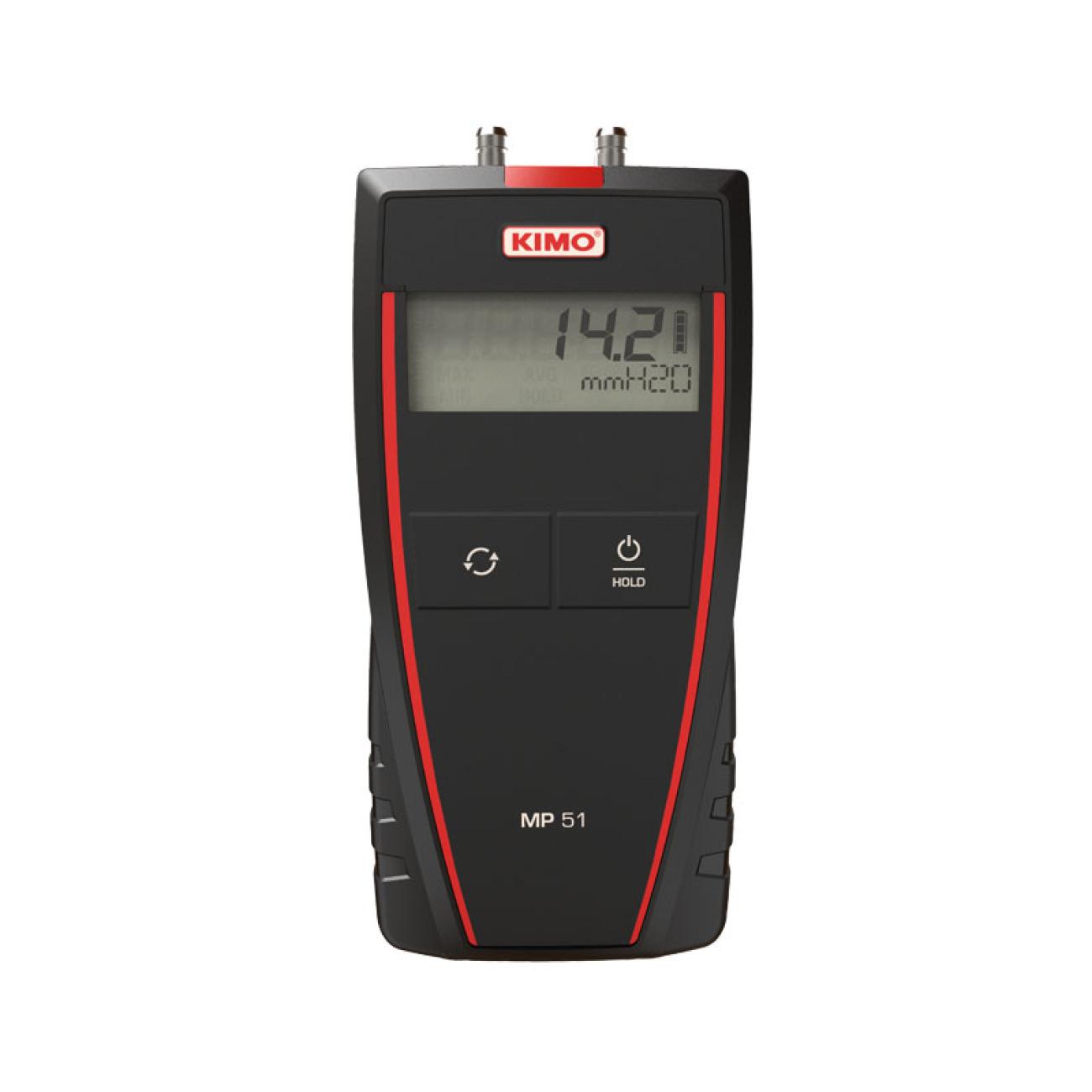

MP 50 / MP 51 Micromanometer

A Micromanometer allows you to easily make HVAC pressure measurements.

The Kimo MP 50/51 measures extremely small differences in pressure using a piezoresistive sensor.

Technical Data sheet

Measuring range: MP 50: -1000 to +1000 Pa and MP 51: -1000 to +1000 mmH2O
Hold function
Manual autozero

Easy to use
Auto shut-off: 20 minutes
Adjustment certificate

Categories: HVAC Measuring instruments, Instrumentation, Micromanometers, Portable instruments

Measure details

Units	daPa , inWg , kPa , mbar , mmH₂O , mmHg , Pa

Measuring ranges

MP 50	-1000.00 Pa … 1000.00 Pa
MP 51	-1000.00 mmH₂O … 1000.00 mmH₂O

Technical details

Parameters	Differential pressure
Displays	2-line display
IP Protection	IP 54
Battery life	180 hours
Standards	2011/65/EU RoHS II , 2012/19/EU WEEE , 2014/30/EU EMC , 2014/35/EU Low Voltage , UKCA
Power supply	4 piles AAA LR03 1.5 V
Protective cover	No
Interchangeable module	No

Instrument Dimensions

Length	71.5 mm
Width	34.2 mm
Height	156.5 mm
Weight	200 g

Operating temperature

Min	0.00 °C
Max	50.00 °C

Storage temperature

Min	-20.00 °C
Max	80.00 °C
