Metering Split-Core CTs

Higher Reliability, Faster Installation, Superior Accuracy | Sense the Difference
1% total system accuracy (meter & CT)
For use with Senva’s EMX and Branch Multi-Circuit Meter

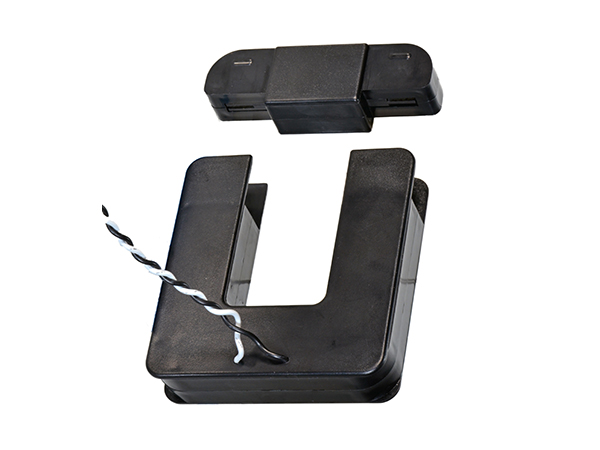

Flexible Split-core Sensors for easy installation or retrofits
Monitor loads from 15-2000A

  • Choose from 5 aperture sizes
  • Linear output 333mV or 0.333V at rated current
  • Sense loads 15-2000A
  • Use with any standard meter or data-logger
  • High accuracy
  • UL Listed Energy Monitoring Equipment,
  • UL recognized Instrument Transformer, CE and RoHS compliant

Ask for a quotation

The Senva Metering Series CT’s provide a high accuracy linear 0V to 0.333VAC signal output proportional to the measured current. These can be safely and simply installed to be used with most power meters, data loggers, and other instruments. Our Split-core Metering CT’s come in a range of inner diameter sizes and amperages to accommodate a wide variety of installations and retro-fits.

  • Energy management and performance contracting
  • Monitoring for commercial tenants
  • Activity-based costing in commercial and industrial facilities
  • Real-time power monitoring
  • Load shedding
  • Audits/temporary monitoring
  • Distributed generation
  • Great for data center energy power sensing

Performance

Accuracy

±1% From 5-120% rated current

Rated Output

Scale

0.333VAC

Current Range

T10
T16
1250
2000
3000

15A, 30A, 50A
100A
100A, 150A, 200A, 300A
400A, 600A, 800A
1000A, 1200A, 1500A, 2000A

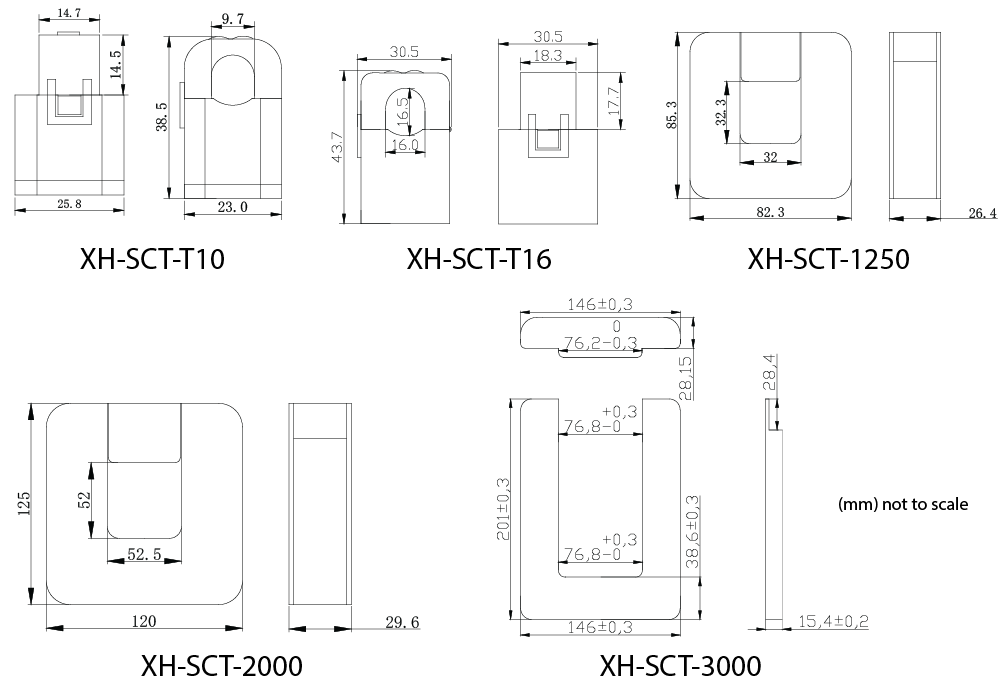

Inner Diameter

T10
T16
1250
2000
3000

10mm, 0.39in, round
16mm, 0.63in, round
19.1mm, 0.75in, square
31.8mm, 1.25in, square

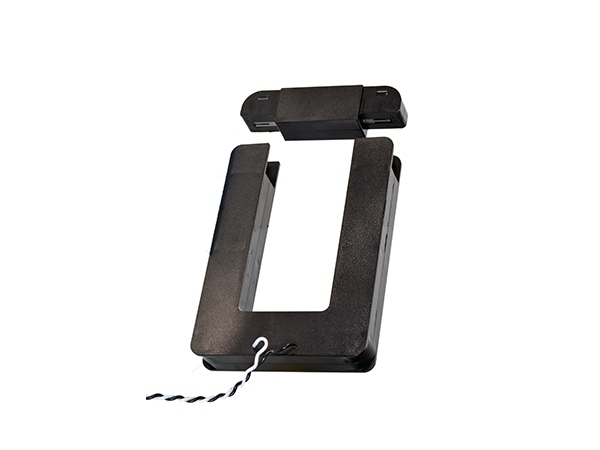

76.2mmx127mm, 3x5in, rectangular

Phase Angle

Rated

Less than 2 degrees at 50% rated current

Voltage

Insulation Voltage
Primary Voltage

600VAC
5000VAC (insulated conductor)

Environmental

Operating Temp

-15 to 60oC

Frequency

Freq Range

50-400Hz

Leads

Length
Wire

105cm, 4 ft.
UL 1015 twisted pair, 22AWG

Agency

Compliance

UL/cUL Recognized, CE Compliant, RoHS Compliant
