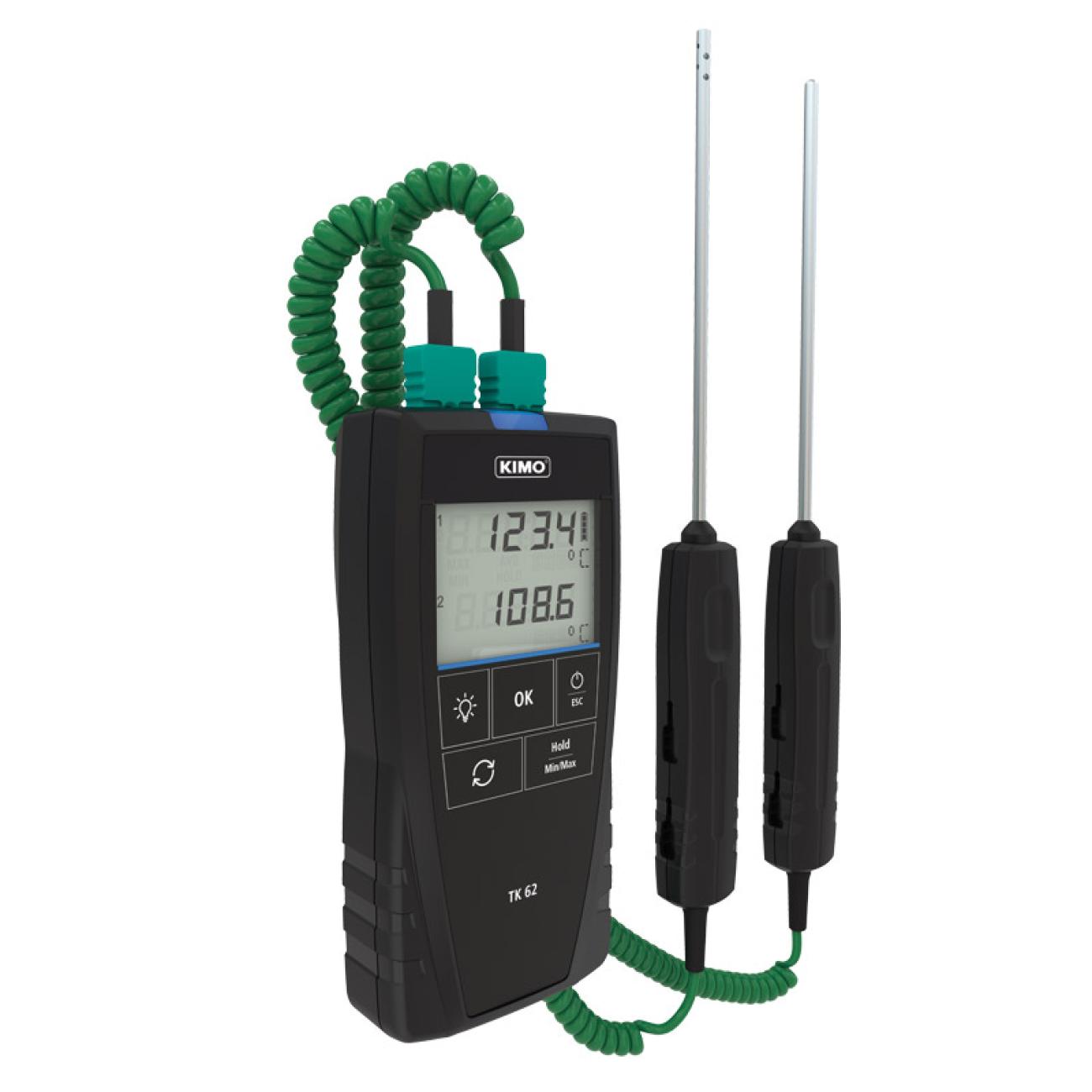

TK 61 / TK 62 Thermocouple temperature

Kimo’s TK 61/62 digital thermometers are designed to accurately measure air temperature using an assortment of thermocouples.

Probe(s) not included, sold separately.

Technical Data sheet

Measuring range: -200 to +1760°C
Adjustable alarms
Hold function and min-max values

TK 61: 1 channel and TK 62: 2 channels
Adjustable backlight
Adjustment certificate

Categories: HVAC Measuring instruments, Instrumentation, Portable instruments, Thermometers

Measure details

Units	°C, °F

Measuring ranges

Thermocouple temperature	-100.00 °C … 750.00 °C, -200.00 °C … 1300.00 °C, -200.00 °C … 400.00 °C, 0.00 °C … 1760.00 °C

Technical details

Parameters	Temperature
Displays	4-line display
Battery life	180 hours
Standards	2011/65/EU RoHS II, 2012/19/EU WEEE, 2014/30/EU EMC, 2014/35/EU Low Voltage, UKCA
Power supply	4 batteries AAA LR03 1.5 V
Protective cover	No
Interchangeable module	No

Instrument Dimensions

Length	71.5 mm
Width	34.2 mm
Height	147.9 mm
Weight	210 g

Operating temperature

Min	0.00 °C
Max	50.00 °C

Storage temperature

Min	-20.00 °C
Max	80.00 °C
