Current Transducers

Higher Reliability, Faster Installation, Superior Accuracy | Sense the Difference
0-5VDC, 0-10VDC, 4-20mA outputs
Multiple selectable range split-cores
Optional command relay with LED
Fixed range on solid-cores

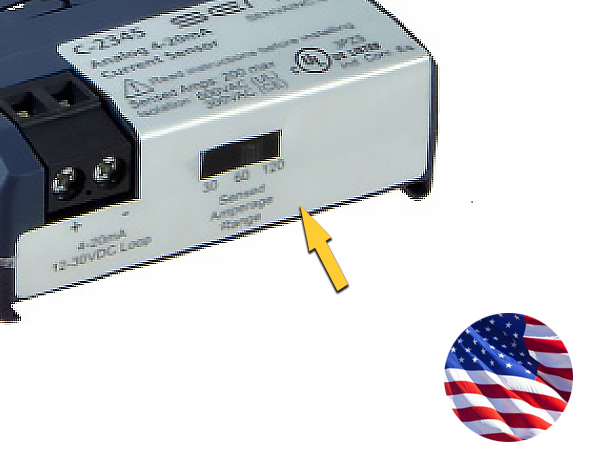

  • Selectable ranges (30, 60, 120A or 5, 10, 20A) C-234X makes scaling easy, reduces call-backs and inventory
  • 0-5VDC, 0-10VDC, 4-20mA loop powered versions for control compatibility

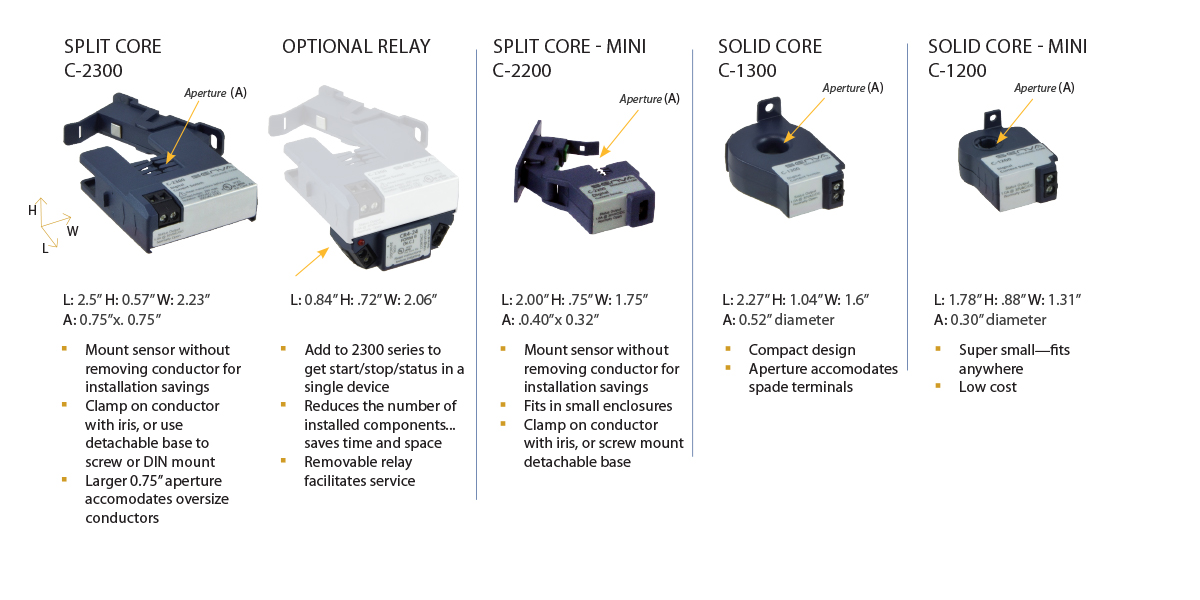

  • Superior split-core design for easy installation, mount sensor without removing conductor for installation savings
  • Clamp on conductor with iris or use detachable base to screw or DIN mount
  • Larger 0.75” aperture accomodates oversize conductors

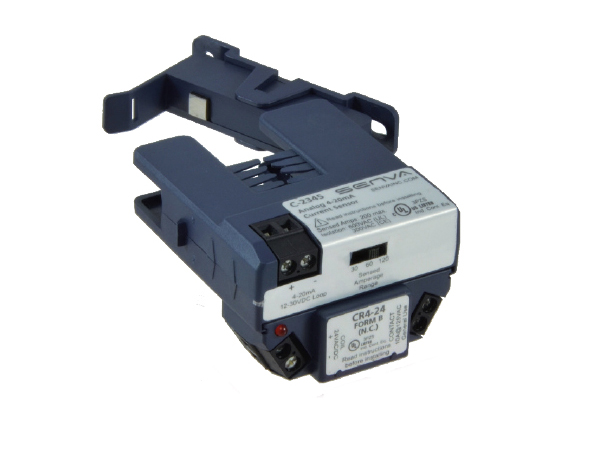

  • Snap-on command relay for unitary start/stop/status… saves time and space
  • Industry leading 7 year limited warranty

Ask for a quotation

Senva analog transducers measure AC current and provide a proportional output for load trending and control. Choose from easy to install split-core or compact solid core. Selectable ranges and optional command relay make for a versatile transducer.

  • Load trending
  • Motor control
  • Process control
  • Fan/Pump status
  • Motor load jamming
  • Lighting load levels
  • Great for data center current transducer sensing

ORDERING INFORMATION

Split Core

Amperage Range

Output

Sensor Power

Sensor Aperature

C-2343

30A, 60A, 120A Selectable

0 - 5 VDC

Induced

0.75"

C-2344

30A, 60A, 120A Selectable 0 - 10 VDC

Induced

0.75"

C-2345

30A, 60A, 120A Selectable

4 - 20mA

Loop- powered, 12-30 VDC

0.75"

C-2343-200

Fixed 200A Full-Scale Range

0 - 5 VDC

Induced

0.75"

C-2344-200

Fixed 200A Full-Scale Range

0 - 10 VDC

Induced

0.75"

C-2343L 5A, 10A, 20A Selectable

0 - 5 VDC

Induced

0.75"

C-2345L

5A, 10A, 20A Selectable

4-20mA

Loop- powered, 12-30 VDC

0.75"

Solid Core - Mini

Range A

Output

Sensor Power

C-1203

15 A

0 - 5 VDC

Induced

0.30"

C-1203-L

5 A

0 - 5 VDC

Induced

0.30"

C-1205

15 A

4 - 20mA

Loop- powered, 12-30 VDC

0.30"

Command Relay

Contact rating

Coil

Dimensions (LxWxH)

CR3-24

N.O. 10A@125VAC

24VAC/DC, 15mA nom.

2.94” x 2.23” x 0.82” (1.4” H with relay module)

CR4-24

N.C. 10A@125VAC

24VAC/DC, 15mA nom.

2.94” x 2.23” x 0.82” (1.4” H with relay module)

CR3-12

N.O. 10A@125VAC

9-12VDC, 30mA nom.

2.94” x 2.23” x 0.82” (1.4” H with relay module)

CR4-12

N.C. 10A@125VAC

9-12VDC, 30mA nom.

2.94” x 2.23” x 0.82” (1.4” H with relay module)

Specifications

Environmental Rating

5-140 °F (-15-60 ° C)

10-90% RH Non-condensing

Insulation Class

600V RMS. For use on insulated conductors only! Use minimum 75 ° C insulated conductor

Accuracy

+/-2% F.S. over 10 to 100% range

Frequency Range

50/60Hz
