BioAerosol Sampler Eco

BioAerosol Sampler Eco (BAS Eco) is a high performance air sampler, based on the principle of Andersen impact method.

Flow rate: 100LPM
Long battery life: ≥10 hours
Data Storage: 20,000 sets
Remote sampling: up to 8 m

Ask for a quotation

PRODUCT FEATURE

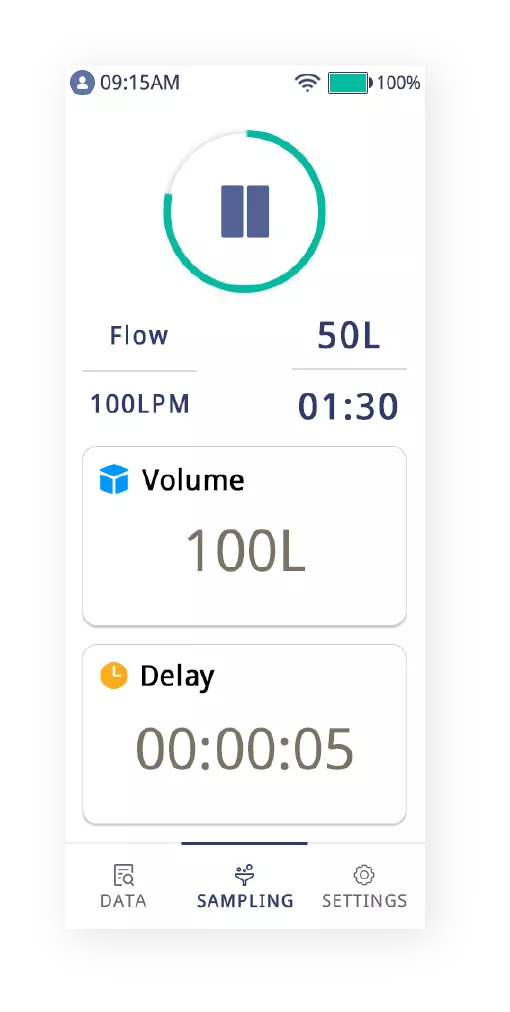

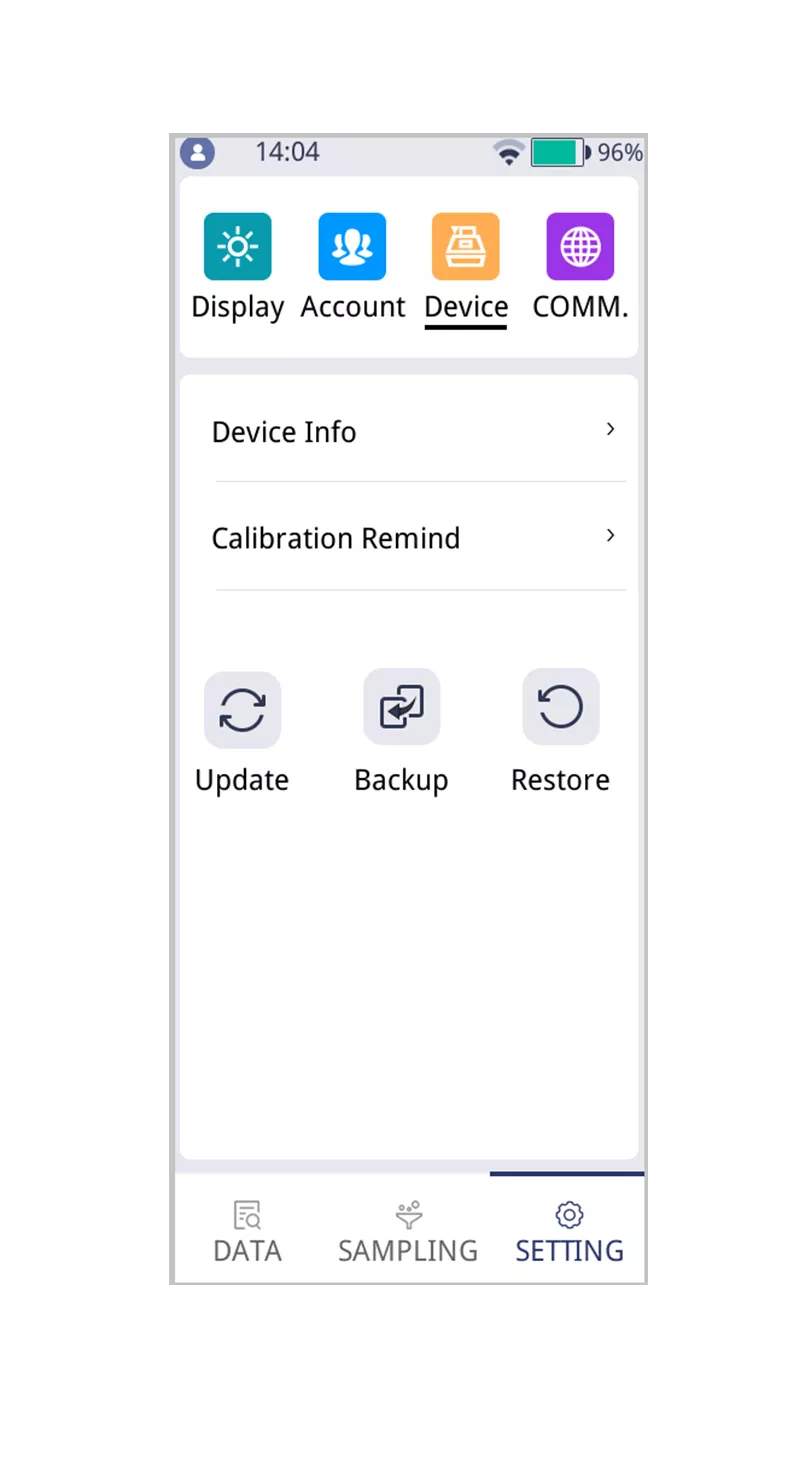

4'' rapid response capacitive touchscreen Quick set sampling specifications Supports remote sampling

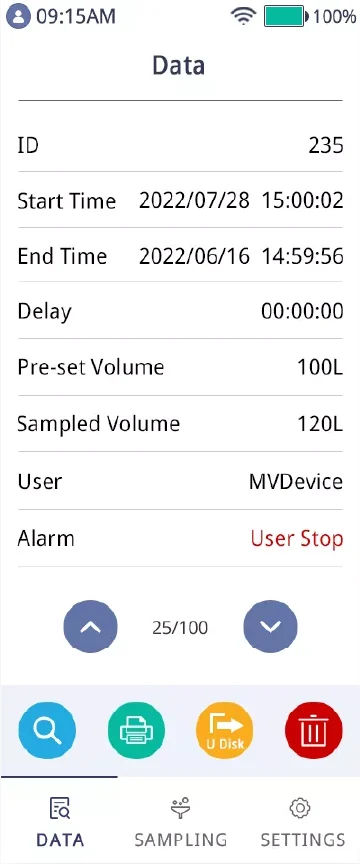

One-click report export and printing Wireless connection with the APC and BAMS to support triggered sampling

Long Battery Life

100L/min≥10hours (60m³)

Flow Accuracy

±2.5%(100L/min)

Compliance with FDA21 CFR Part 11

REMOTE SAMPLING

APPLICATIONS

Isokinetic Sampling

When performing isokinetic sampling, the sampler is designed so that the airflow direction into the inlet of the sampling head is consistent with the average velocity of the unidirectional flow through the sampling head

Isokinetic Sampling

  • The sampling process is clear and distinct
  • LED lighting and beep prompt error

Compressed Gas Sampling

Compressed gas is decompressed to atmospheric pressure by the High Pressure Diffuser (HPD) and transported to the BioAerosol Sampler-Economic for sampling

  • FLOW RATE:100L/min
  • FLOW RATE ACCURACY: ±2.5%(100L/min)
  • SAMPLING VOLUMES:1-6,000L
  • DELAY:0-23 hours 59 minutes 59 seconds
  • SAMPLING HEAD:Φ0.60mm*280holes (100L/min)
  • DIMENSIONS (HxWxD):218x120x120mm/ 8.58x4.72x4.72 in (without foot mat)
  • WEIGHT:9kg (6.4lbs)
  • EXTERNAL SURFACE:Anodized aluminium
  • POWER:24V±10% AC adapter
  • BATTERY:8V, 6800mAh rechargeable lithium battery, running for over 10 hours
  • DATA STORAGE:20,000 sets of sample records
  • DISPLAY: 4" capacitive touch screen
  • LANGUAGE:Chinese, English
  • CALIBRATION FREQUENCY:Recommend once a year
  • OPERATING CONDITIONS:5-35℃(41-95℉), 5-90%RH non-condensing
  • STORAGE CONDITIONS:0-40℃(32-104℉), 5-95%RH non-condensing
  • SAFETY:EN 61010-1:2010+A1:2019, EN 61326-1:2013, EN IEC 61326-1:2021, EN 61000-6-1:2007, EN 61000-6-3:2007+A1
  • WARRANTY:24 months (calculated from the date of product activation or 6 months after the date of manufacture, whichever comes first)
