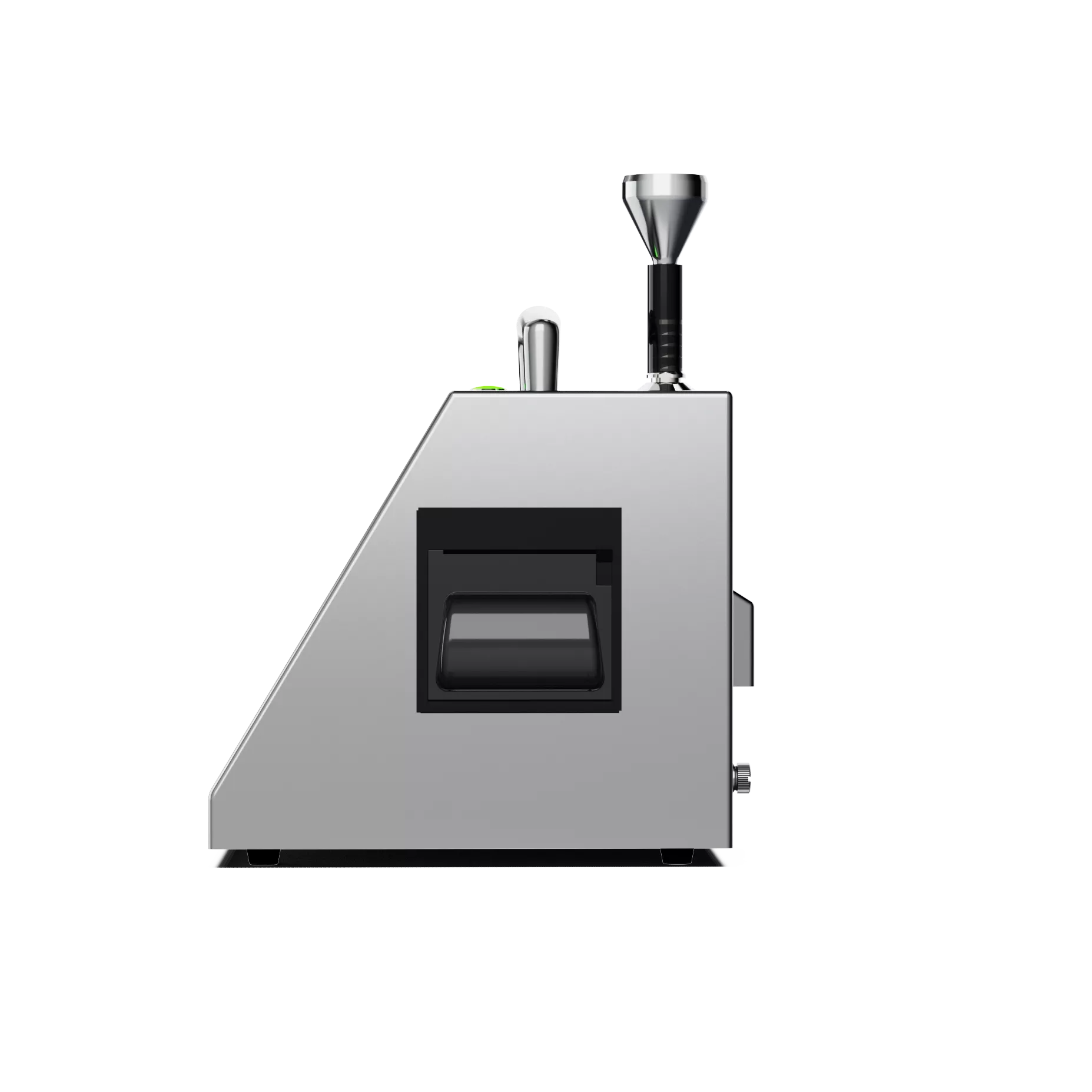

Airborne Particle Counter mini – (28.3LPM) (50LPM) (100LPM)

  • 4.2kg (9.26lbs) without battery
  • Long life laser, 10 years warranty

Capacity : (28.3LPM) (50LPM)(100LPM)

Capacitive touch screen : 8.0″

Zone : 20,000

Data: 5 million sets

Portable : 4.2Kg

Model: A210

Ask for a quotation

PRODUCT FEATURE

8 inch capacitive touchscreen, quick response Even with two pairs of latex gloves.

Sealed 316L stainless steel enclosure, resistant to disinfectants commonly used in cleanrooms

  • 4.2kg (9.26lbs) without battery.
  • Long life laser, 10 years warranty.
  • Multi-level authority management, featured with audit trail.
  • Complies with FDA 21 CFR Part 11.

OPERATION INTERFACE

Sampling

  • Shows concentration curves, sampling data and scheme simulaneously.
  • Allows the viewer to select any mode and zoom in on the details.
  1. Real-time concentration curves, to get a better understanding of environmental particle condition
  2. Clearly display all locations of one zone
  3. Easily and quickly switch between the three modes

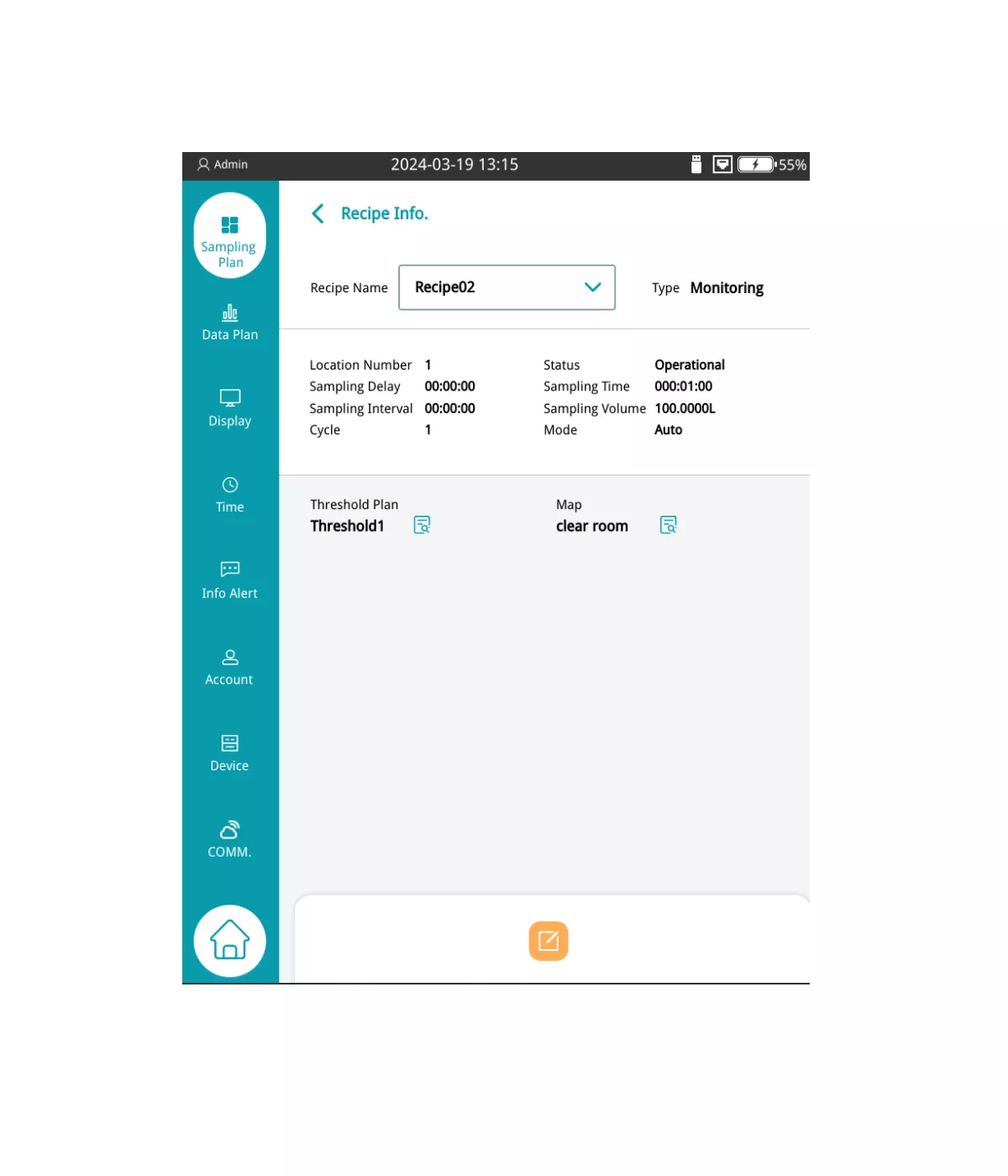

Setup

  • Comprehensive functions and clear layout. Simple and easy to use.
  • One-click system software upgrade.

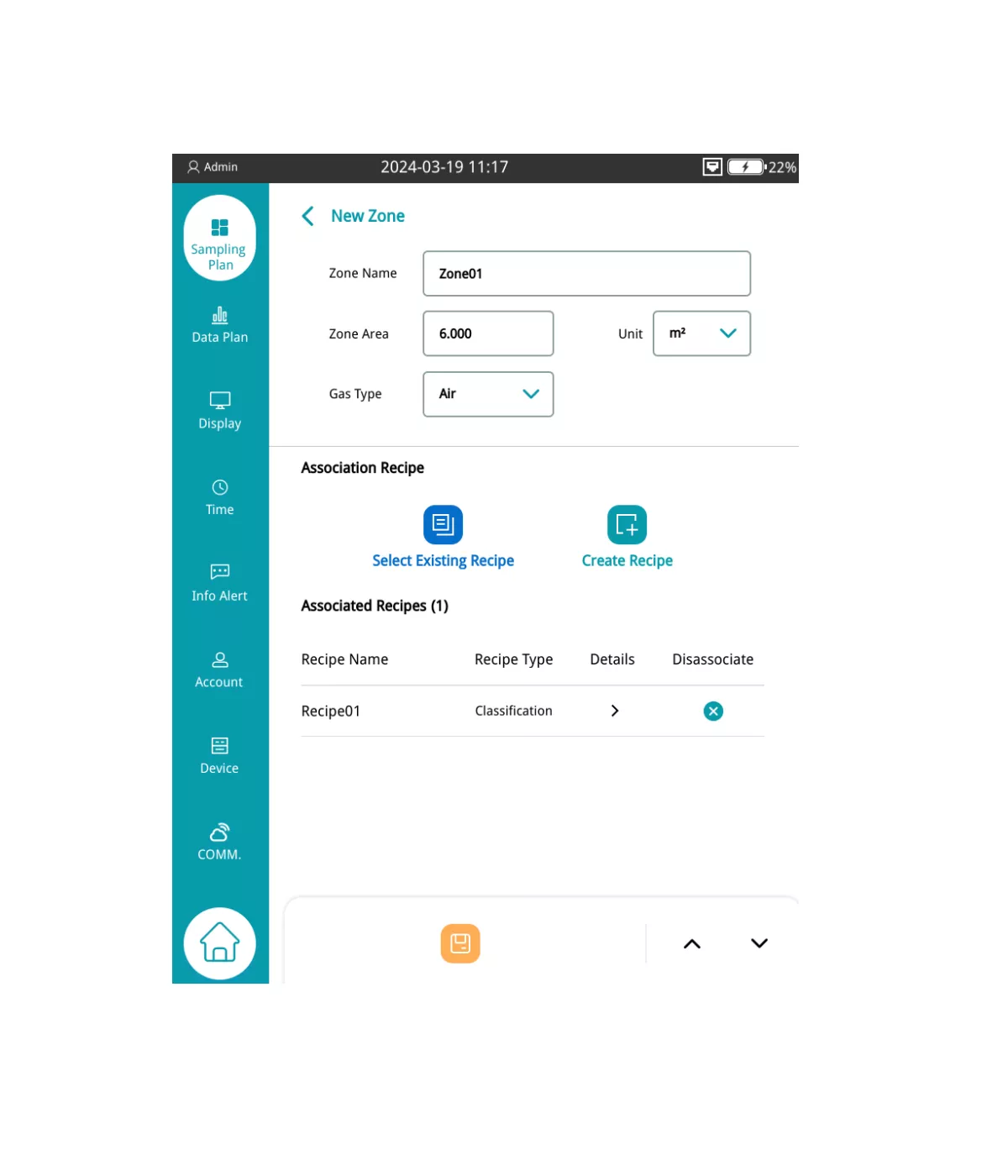

  • Multiple sets of personalized sampling schemes can be customized for any zone.

Data

  • Standard report: one key to generate ISO/EU GMP/CHINESE GMP/Fed Std reports
  • Data review and data export
  1. Sum up data by zone
  2. Freely switch counting unit between #, #/ft³, #/m³
  3. Automatically generate UCL values and average values
  4. Search for sample records precisely by time, zone and operator
  • Data integrity: feature with audit trail
  • FLOW RATE: 100LPM±5%
  • SIZE RANGE: 0.5µm-25µm
  • SIZE CHANNELS: 0.5µm, 1.0µm, 2.0µm, 3.0µm, 5.0µm, 10.0µm
  • SIZE RESOLUTION: <15% @ 0.5µm (meets ISO 21501-4)
  • COUNT EFFICIENCY:  50% ±20% for 0.5µm, 100% ±10% for >0.75µm (meets ISO 21501-4 and JIS B9921)
  • CONCENTRATION LIMIT:   560,000 particles/ft³ at 10% coincidence loss
  • ZERO COUNT:  <1count/5min
  • EXHAUST:  Internal HEPA filter (>99.999%@0.3µm)
  • ZONE/ LOCATION:  20,000 zones and 200,000 locations
  • SAMPLING TIME:  1 second to 168 hours
  • CYCLES:  1 - 1000 samples on one location
  • LASER SOURCE:  Long life laser
  • DATA STORAGE:  2.5GB,  5,000,000 sets of sample records
  • DISPLAY:  8”LCD capacitive touch screen
  • LANGUAGE:  Chinese, English
  • DATA RELIABILITY:  Compliant with 21 CFR Part 11
  • REPORTS:  Compliant with ISO/EU GMP/CHINESE GMP/Fed Std
  • CALIBRATION FREQUENCY:  Recommend once a year
  • DIMENSIONS (H X W X D): 9.37 x 6.69 x 8.66 in, 238 x 170 x 220 mm
  • WEIGHT:  4.2Kg (9.26lbs) (without battery); 5.2Kg (11.46lbs) (with 2 batteries)
  • ENCLOSURE:  316L Stainless Steel

    POWER:  AC 100-240V, 50 Hz/60 Hz

  • BATTERY:  10.8V, 9000mAhx2, rechargeable lithium battery
  • BATTERY ENDURANCE:  running for 4 hours
  • MAX POWER CONSUMPTION:  AC 90W
  • OPERATING CONDITIONS:   5-35℃(41-95℉), 5-90%RH non-condensing
  • STORAGE CONDITIONS: 0-40℃(32-104℉), 5-95%RH non-condensing
  • SAFETY:  EN 61010-1:2010+A1:2019, EN 61326-1:2013, EN 61326-2-2:2013, EN 60825-1:2014, EN 61000-6-1:2007, EN 61000-6-3:2007+A1, FCC Part 15, Subpart B
  • WARRANTY:  24 months (after activition or 6 months from ex-factory, whichever comes first)
