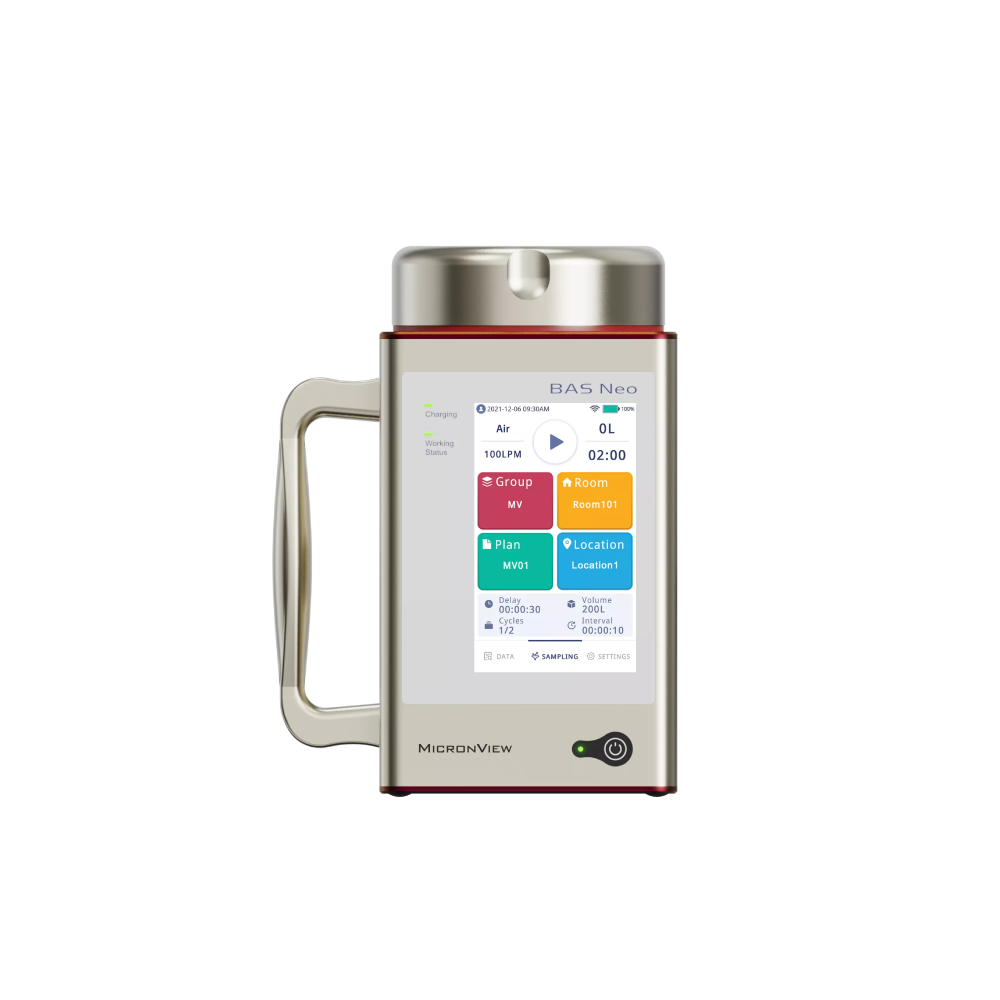

BioAerosol Sampler Neo (C320)

BioAerosol Sampler Neo (BAS Neo) is a high performance air sampler, based on the principle of Andersen impact method.

Flow rate: Dual flow rates (100 & 200 L/min)
Long Battery Life: ≥7 hours (100L/min)
Data Storage: 20,000 sets

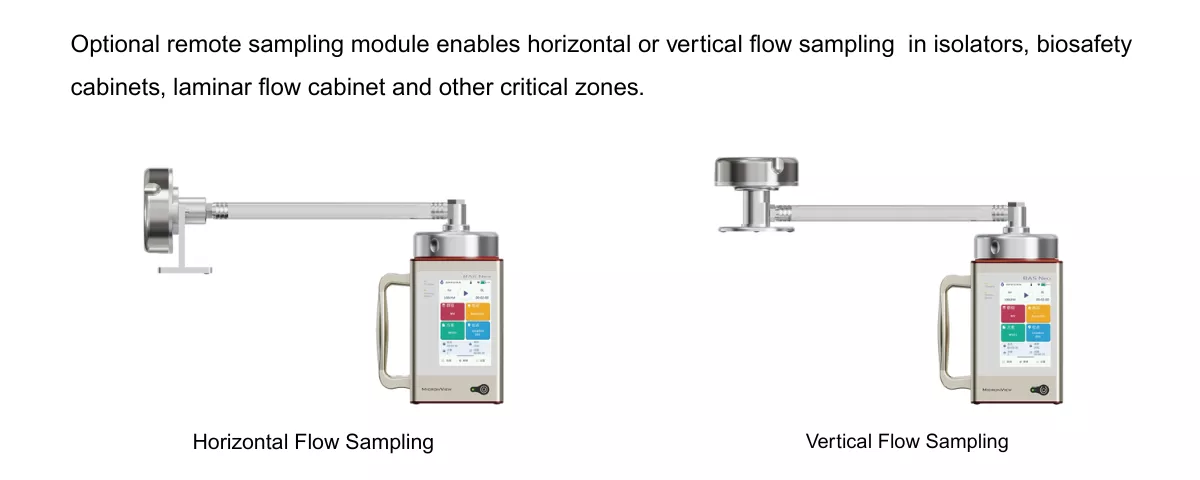

Remote sampling: 8 m
Model: C320

Technical Data sheet

Categories: Air Particles Counting, BioAerosol Sampler, Contamination Control

PRODUCT FEATURE

APPLICATIONS

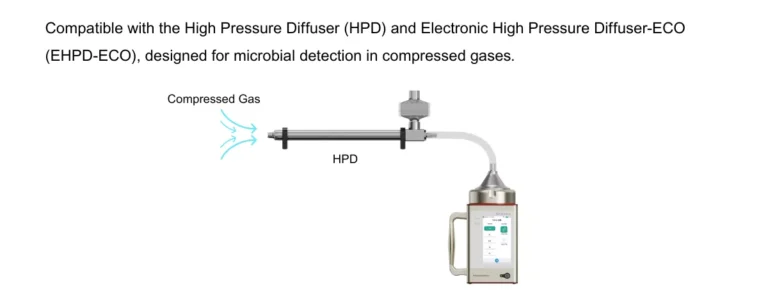

GAS TYPE: Air, Nitrogen, Carbon Dioxide, Argon, Oxygen

FLOW RATE：Air: 100L/min±2.5%, 200L/min±3% Compressed Gas: 100L/min±5%

FLOW RATE CONTROL : Built-in differential pressure sensor

SAMPLING PLAN： 20,000 groups, 20,000 rooms, 500 locations for each room, up to 20,000 locations

SAMPLING VOLUMES： 1-6,000L, 20 default volumes

DELAY： 0-23 hours 59 minutes 59 seconds

CYCLES： 1-999cycles

INTERVAL： 00:00:00，5 seconds-23 hours 59 minutes 59 seconds

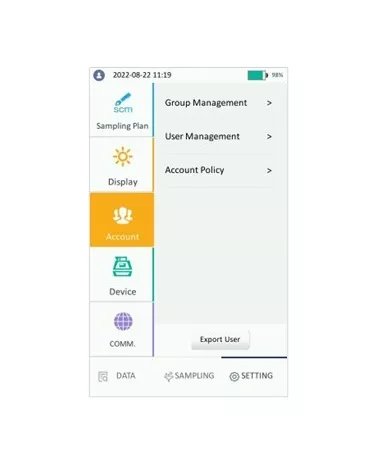

ACCOUNT NUMBER: Up to 20,000 accounts

SAMPLING HEAD：

Screw-in Installation : Φ0.60mm*280holes (100L/min), Anodized aluminum

Φ0.70mm*400holes (200L/min), Anodized aluminum

(optional316Lstainlesssteelavailable, customizable sampling head)

Magnetic Suction Installation : Φ0.60mm*280holes (100L/min), 2205 duplex stainless steel material

Φ0.70mm*400holes (200L/min), 2205 duplex stainless steel material

The installation method of the sampling head can be specially customized according to the user's requirements.

DIMENSIONS (HxWxD)：220.5*163*120 mm/8.68*6.42*4.72 in

WEIGHT： 2.5kg (5.51lbs)

EXTERNAL SURFACE： Anodized aluminum

POWER： 24V±10% AC adapter

BATTERY： 10.8V, 6800mAh rechargeable lithium battery, 100L/min: running for over 7 hours, 200L/min:running for over 2.5 hours

APPLICATION EXTENSION : Connect with Airborne Particle Counter (APC) and BioAerosol Monitoring System(BAMS) to collect the biological contamination sample in real time.

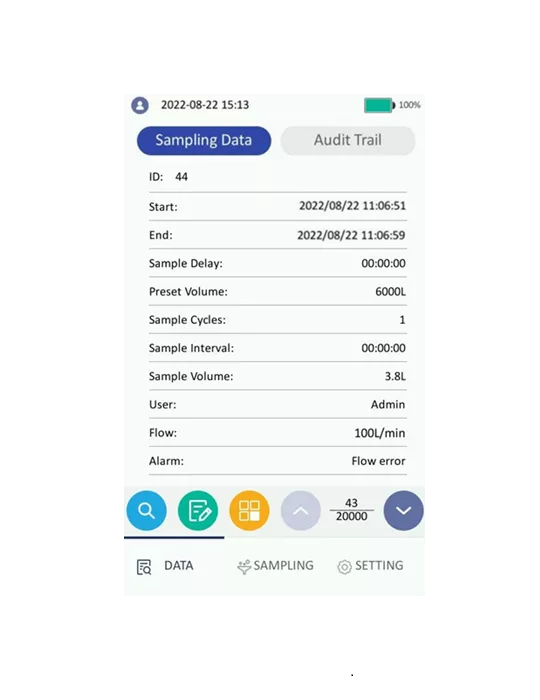

DATA STORAGE： 20.000 sets of sample records

ALARM : LED lighting and beep

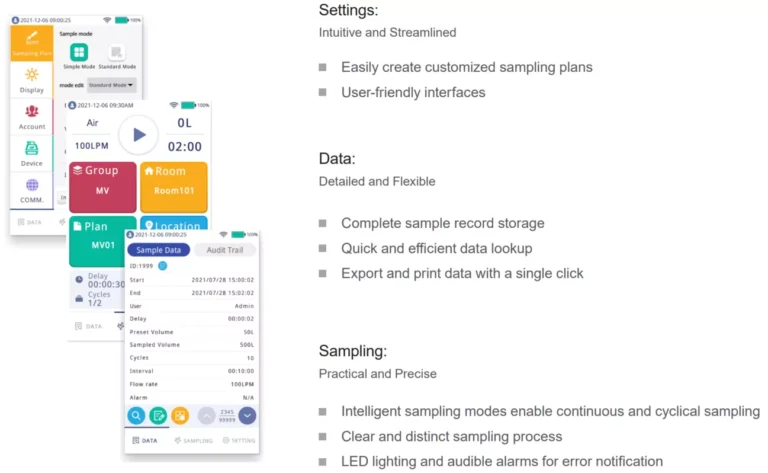

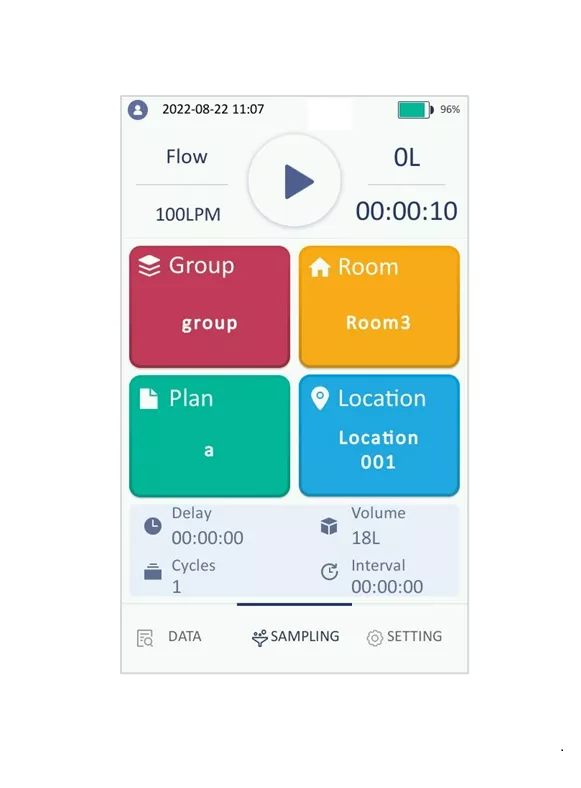

DISPLAY： 5" capacitive touch screen

LANGUAGE： Chinese, English

CALIBRATION FREQUENCY： Recommend once a year

OPERATING CONDITIONS：5-35℃(41-95℉), 5-90%RH non-condensing

STORAGE CONDITIONS： 0-40℃(32-104℉), 5-95%RH non-condensing

SAFETY： EN 61010-1:2010+A1:2019, EN 61326-1:2013, EN 61326-2-2:2013

WARRANTY： 24 months (calculated from the date of product activation or 6 months after the date of manufacture, whichever comes first)
