The IL Coil Clean keeps prevent growth of biofilms and mold evaporator coils. It is ideal for any building equipped with an HVAC system. The IL Coil Clean can be installed on either side of the evaporator coils.

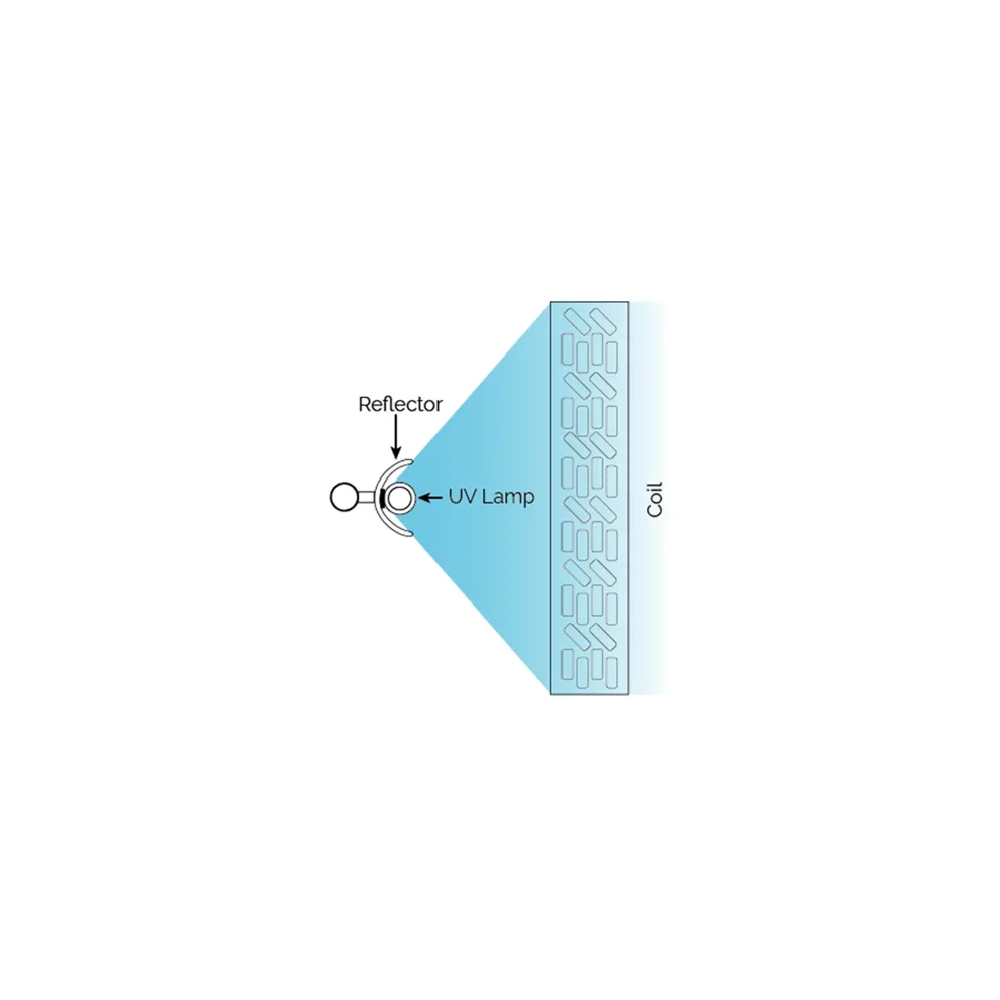

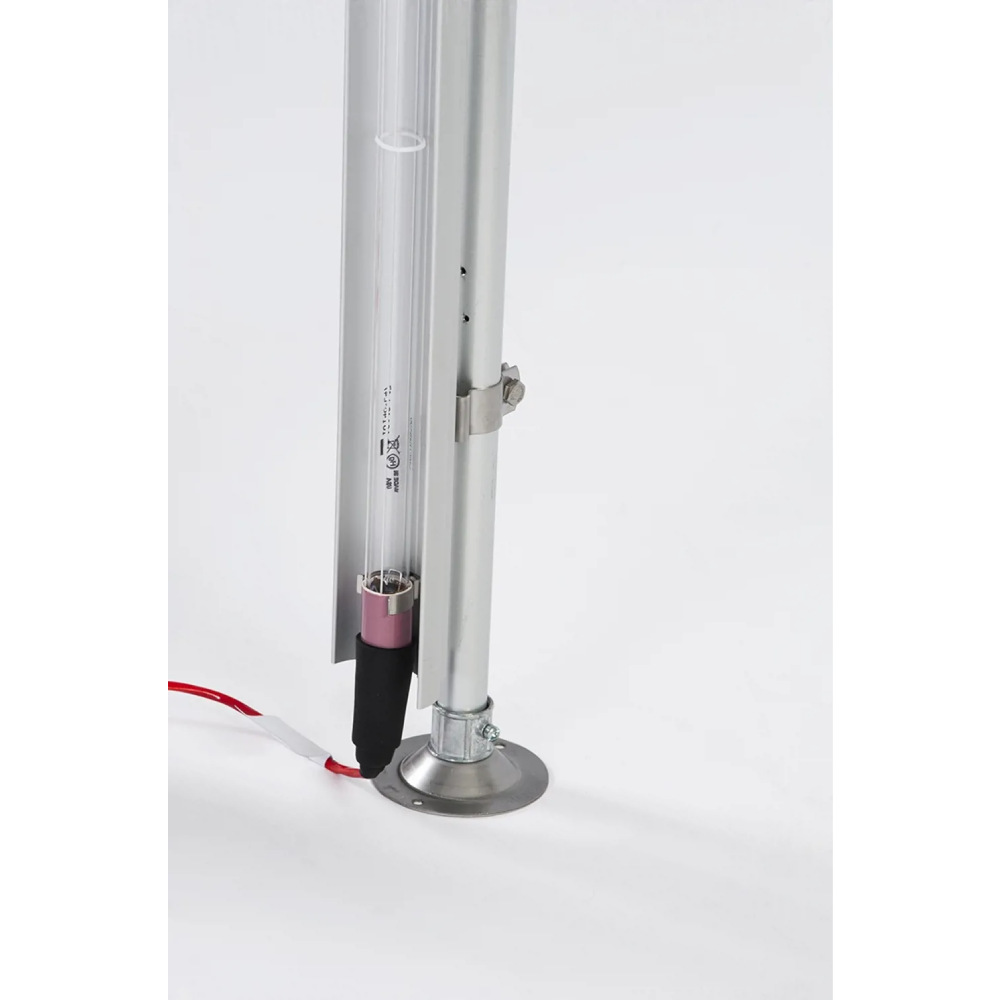

Using patented and versatile technology, the IL Coil Clean uses high-intensity UV lamps combined with aluminum parabolic reflectors, so that all the UV energy produced is concentrated on the surface of the evaporator coils.

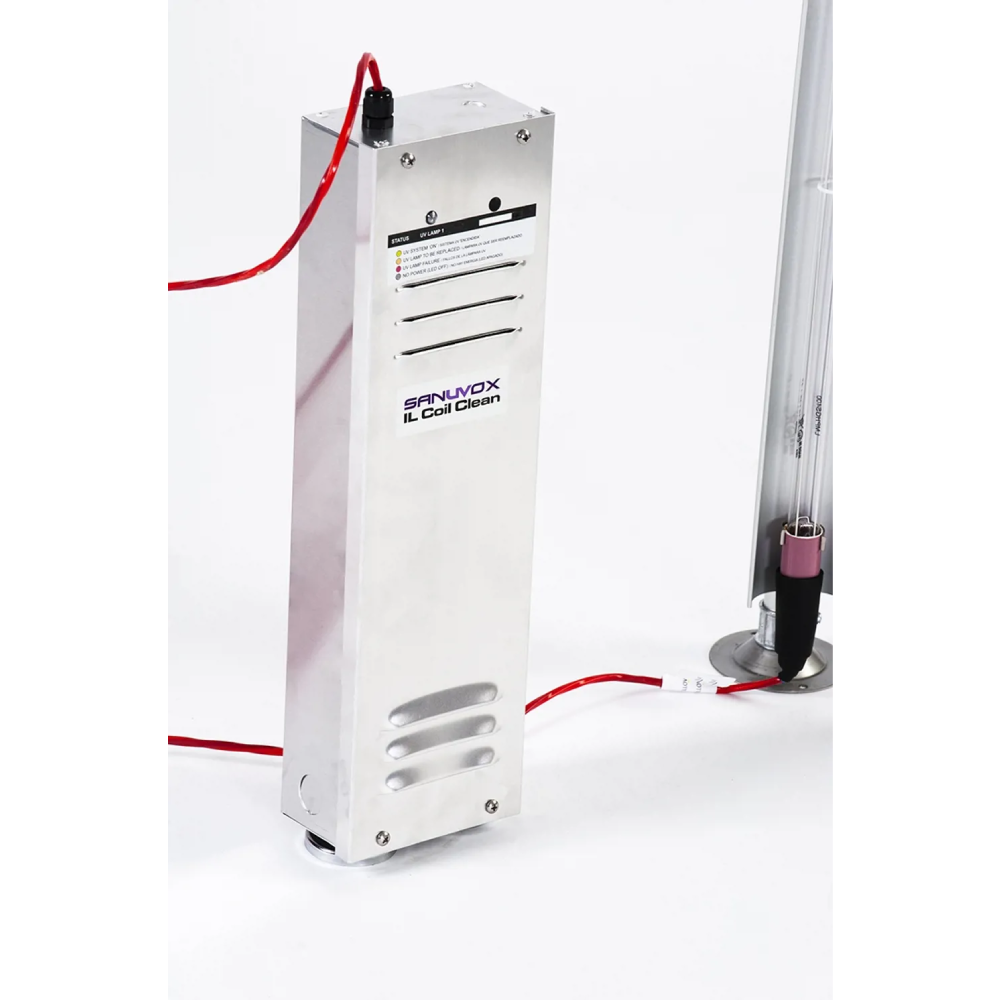

The modules containing the ballasts are equipped with LED indicating the status of the lamps to facilitate maintenance.Dry contacts are also included for remote monitoring BMS systems.
The IL Coil Clean requires little maintenance; it is recommended to simply change the UV lamps after 17,000 hours of use.
When a biofilm (a coating of microbial growth) covers a coil, it acts as an adhesive, attracting dirt and coating the fins of the coil. This results in an odor emanating from the equipment and a loss of energy efficiency as the equipment must work harder to provide the same air temperature.
Installed facing the air conditioning’s evaporator coils, the Saber Magnet keeps the system running at top efficiency, saving you electricity and preventing the coil from becoming a source of bad air quality.
